Before we begin Visual Basic 6 programming, let us understand some basic concepts of programming. According to Webopedia, a computer program is an organized list of instructions that, when executed, causes the computer to behave in a predetermined manner. Without programs, computers are useless. Therefore, programming means designing or creating a set of instructions to ask the computer to carry out certain jobs which normally are very much faster than human beings can do.
A lot of people think that computer CPU is a very intelligent thing, which in actual fact it is a dumb and inanimate object that can do nothing without human assistant. The microchips of a CPU can only understand two distinct electrical states, namely, the on and off states, or 0 and 1 codes in the binary system. So, the CPU only understands a combinations of 0 and 1 codes, a language which we called machine language. Machine language is extremely difficult to learn and it is not for us laymen to master it easily. Fortunately , we have many smart programmers who wrote interpreters and compilers that can translate human language-like programs such as BASIC into machine language so that the computer can carry out the instructions entered by the users. Machine language is known as the primitive language while Interpreters and compilers like Visual Basic are called high-level language. Some of the high level computer languages beside Visual Basic are Fortran, Cobol, Java, C, C++, Turbo Pascal, and etc .
What is Visual Basic?
VISUAL BASIC is a high level programming language which was evolved from the earlier DOS version called BASIC. BASIC means Beginners' All-purpose Symbolic Instruction Code. It is a very easy programming language to learn. The codes look a lot like English Language. Different software companies produced different version of BASIC, such as Microsoft QBASIC, QUICKBASIC, GWBASIC ,IBM BASICA and so on. However, it seems people only use Microsoft Visual Basic today, as it is a well developed programming language and supporting resources are available everywhere. Now, there are many versions of VB exist in the market, the most popular one and still widely used by many VB programmers is none other than Visual Basic 6. We also have VB.net, VB2005 and the latest VB2008, which is a fully object oriented programming (OOP) language. It is more powerful than VB6 but looks more complicated to master.
VISUAL BASIC is a VISUAL and events driven Programming Language. These are the main divergence from the old BASIC. In BASIC, programming is done in a text-only environment and the program is executed sequentially. In VB, programming is done in a graphical environment. In the old BASIC, you have to write program codes for each graphical object you wish to display it on screen, including its position and its color. However, In VB , you just need to drag and drop any graphical object anywhere on the form, and you can change its color any time using the properties windows.
On the other hand, because users may click on a certain object randomly, so each object has to be programmed independently to be able to response to those actions (events). Therefore, a VB Program is made up of many subprograms, each has its own program codes, and each can be executed independently and at the same time each can be linked together in one way or another.
What programs can you create with Visual Basic 6?
With VB 6, you can create any program depending on your objective. For example, if you are a college or university lecturer, you can create educational programs to teach business, economics, engineering, computer science, accountancy , financial management, information system and more to make teaching more effective and interesting. If you are in business, you can also create business programs such as inventory management system , point-of-sale system, payroll system, financial program as well as accounting program to help manage your business and increase productivity. For those of you who like games and working as games programmer, you can create those programs as well. Indeed, there is no limit to what program you can create ! There are many such programs in this tutorial, so you must spend more time on the tutorial in order to learn how to create those programs.
Creating Your First Application
In this section, we will not go into the technical aspects of Visual Basic programming yet, what you need to do is just try out the examples below to see how does in VB program look like:
Example 2.1.1 is a simple program. First of all, you have to launch Microsoft Visual Basic 6. Normally, a default form with the name Form1 will be available for you to start your new project. Now, double click on Form1, the source code window for Form1 as shown in figure 2.1 will appear. The top of the source code window consists of a list of objects and their associated events or procedures. In figure 2.1, the object displayed is Form and the associated procedure is Load.
Figure 2.1 Source Code Window
When you click on the object box, the drop-down list will display a list of objects you have inserted into your form as shown in figure 2.2. Here, you can see a form with the name Form1, a command button with the name Command1, a Label with the name Label1 and a Picture Box with the name Picture1. Similarly, when you click on the procedure box, a list of procedures associated with the object will be displayed as shown in figure 2.3. Some of the procedures associated with the object Form1 are Activate, Click, DblClick (which means Double-Click) , DragDrop, keyPress and more. Each object has its own set of procedures. You can always select an object and write codes for any of its procedure in order to perform certain tasks.
You do not have to worry about the beginning and the end statements (i.e. Private Sub Form_Load.......End Sub.); Just key in the lines in between the above two statements exactly as are shown here. When you press F5 to run the program, you will be surprise that nothing shown up .In order to display the output of the program, you have to add the Form1.show statement like in Example 2.1.1 or you can just use Form_Activate ( ) event procedure as shown in example 2.1.2. The command Print does not mean printing using a printer but it means displaying the output on the computer screen. Now, press F5 or click on the run button to run the program and you will get the output as shown in figure 2.4.
You can also perform arithmetic calculations as shown in example 2.1.2. VB uses * to denote the multiplication operator and / to denote the division operator. The output is shown in figure 2.3, where the results are arranged vertically.
Figure 2.2: List of Objects
Figure 2.3: List of Procedures
Example 2.1.1
Private Sub Form_Load ( )
Form1.show
Print “Welcome to Visual Basic tutorial”
End Sub
Figure 2.4 : The output of example 2.1.1
Example 2.1.2
Private Sub Form_Activate ( )
Print 20 + 10
Print 20 - 10
Print 20 * 10
Print 20 / 10
End Sub
Figure 2.5: The output of example 2.1.2
You can also use the + or the & operator to join two or more texts (string) together like in example 2.1.4 (a) and (b)
Example 2.1.4(a)
Private Sub
A = Tom
B = “likes"
C = “to"
D = “eat"
E = “burger"
Print A + B + C + D + E
End Sub
Example 2.1.4(b)
Private Sub
A = Tom
B = “likes"
C = “to"
D = “eat"
E = “burger"
Print A & B & C & D & E
End Sub
The Output of Example 2.1.4(a) &(b) is as shown in Figure 2.7.
2.2 Steps in Building a Visual Basic Application
Step 1 : Design the interface
Step 2 : Set properties of the controls (Objects)
Step 3 : Write the event procedures
Before writing an event procedure for the control to response to a user's input, you have to set certain properties for the control to determine its appearance and how it will work with the event procedure. You can set the properties of the controls in the properties window or at runtime.
Figure 3.1 on the right is a typical properties window for a form. You can rename the form caption to any name that you like best. In the properties window, the item appears at the top part is the object currently selected (in Figure 3.1, the object selected is Form1). At the bottom part, the items listed in the left column represent the names of various properties associated with the selected object while the items listed in the right column represent the states of the properties. Properties can be set by highlighting the items in the right column then change them by typing or selecting the options available.
For example, in order to change the caption, just highlight Form1 under the name Caption and change it to other names. You may also try to alter the appearance of the form by setting it to 3D or flat. Other things you can do are to change its foreground and background color, change the font type and font size, enable or disable minimize and maximize buttons and etc.
You can also change the properties at runtime to give special effects such as change of color, shape, animation effect and so on. For example the following code will change the form color to red every time the form is loaded. VB uses hexadecimal system to represent the color. You can check the color codes in the properties windows which are showed up under ForeColor and BackColor .
Private Sub Form_Load()
Form1.Show
Form1.BackColor = &H000000FF&
End Sub
Another example is to change the control Shape to a particular shape at runtime by writing the following code. This code will change the shape to a circle at runtime. Later you will learn how to change the shapes randomly by using the RND function.
Private Sub Form_Load()
Shape1.Shape = 3
End Sub
Figure 3.1
I would like to stress that knowing how and when to set the objects' properties is very important as it can help you to write a good program or you may fail to write a good program. So, I advice you to spend a lot of time playing with the objects' properties.
I am not going into the details on how to set the properties. However, I would like to stress a few important points about setting up the properties.
* You should set the Caption Property of a control clearly so that a user knows what to do with that command. For example, in the calculator program, all the captions of the command buttons such as +, - , MC, MR are commonly found in an ordinary calculator, a user should have no problem in manipulating the buttons.
* A lot of programmers like to use a meaningful name for the Name Property may be because it is easier for them to write and read the event procedure and easier to debug or modify the programs later. However, it is not a must to do that as long as you label your objects clearly and use comments in the program whenever you feel necessary. T
* One more important property is whether the control is enabled or not.
* Finally, you must also considering making the control visible or invisible at runtime, or when should it become visible or invisible.
3.2 Handling some of the common controls
3.2.1 The Text Box
The text box is the standard control for accepting input from the user as well as to display the output. It can handle string (text) and numeric data but not images or pictures. String in a text box can be converted to a numeric data by using the function Val(text). The following example illustrates a simple program that processes the input from the user.
Example 3.1
In this program, two text boxes are inserted into the form together with a few labels. The two text boxes are used to accept inputs from the user and one of the labels will be used to display the sum of two numbers that are entered into the two text boxes. Besides, a command button is also programmed to calculate the sum of the two numbers using the plus operator. The program use creates a variable sum to accept the summation of values from text box 1 and text box 2.The procedure to calculate and to display the output on the label is shown below. The output is shown in Figure 3.2
Private Sub Command1_Click()
‘To add the values in text box 1 and text box 2
Sum = Val(Text1.Text) + Val(Text2.Text)
‘To display the answer on label 1
Label1.Caption = Sum
End Sub
Figure 3.2
3.2.2 The Label
The label is a very useful control for Visual Basic, as it is not only used to provide instructions and guides to the users, it can also be used to display outputs. One of its most important properties is Caption. Using the syntax label.Caption, it can display text and numeric data . You can change its caption in the properties window and also at runtime. Please refer to Example 3.1 and Figure 3.1 for the usage of label.
3.2.3 The Command Button
The command button is one of the most important controls as it is used to execute commands. It displays an illusion that the button is pressed when the user click on it. The most common event associated with the command button is the Click event, and the syntax for the procedure is
Private Sub Command1_Click ()
Statements
End Sub
3.2.4 The Picture Box
The Picture Box is one of the controls that is used to handle graphics. You can load a picture at design phase by clicking on the picture item in the properties window and select the picture from the selected folder. You can also load the picture at runtime using the LoadPicture method. For example, the statement will load the picture grape.gif into the picture box.
Picture1.Picture=LoadPicture ("C:\VB program\Images\grape.gif")
You will learn more about the picture box in future lessons. The image in the picture box is not resizable.
3.2.5 The Image Box
The Image Box is another control that handles images and pictures. It functions almost identically to the picture box. However, there is one major difference, the image in an Image Box is stretchable, which means it can be resized. This feature is not available in the Picture Box. Similar to the Picture Box, it can also use the LoadPicture method to load the picture. For example, the statement loads the picture grape.gif into the image box.
Image1.Picture=LoadPicture ("C:\VB program\Images\grape.gif")
3.2.6 The List Box
The function of the List Box is to present a list of items where the user can click and select the items from the list. In order to add items to the list, we can use the AddItem method. For example, if you wish to add a number of items to list box 1, you can key in the following statements
Example 3.2
Private Sub Form_Load ( )
List1.AddItem “Lesson1”
List1.AddItem “Lesson2”
List1.AddItem “Lesson3”
List1.AddItem “Lesson4”
End Sub
The items in the list box can be identified by the ListIndex property, the value of the ListIndex for the first item is 0, the second item has a ListIndex 1, and the second item has a ListIndex 2 and so on
3.2.7 The Combo Box
The function of the Combo Box is also to present a list of items where the user can click and select the items from the list. However, the user needs to click on the small arrowhead on the right of the combo box to see the items which are presented in a drop-down list. In order to add items to the list, you can also use the AddItem method. For example, if you wish to add a number of items to Combo box 1, you can key in the following statements
Example 3.3
Private Sub Form_Load ( )
Combo1.AddItem “Item1”
Combo1.AddItem “Item2”
Combo1.AddItem “Item3”
Combo1.AddItem “Item4”
End Sub
3.2.8 The Check Box
The Check Box control lets the user selects or unselects an option. When the Check Box is checked, its value is set to 1 and when it is unchecked, the value is set to 0. You can include the statements Check1.Value=1 to mark the Check Box and Check1.Value=0 to unmark the Check Box, as well as use them to initiate certain actions. For example, the program will change the background color of the form to red when the check box is unchecked and it will change to blue when the check box is checked. You will learn about the conditional statement If….Then….Elesif in later lesson. VbRed and vbBlue are color constants and BackColor is the background color property of the form.
Example 3.4
Private Sub Command1_Click()
If Check1.Value = 1 And Check2.Value = 0 Then
MsgBox "Apple is selected"
ElseIf Check2.Value = 1 And Check1.Value = 0 Then
MsgBox "Orange is selected"
Else
MsgBox "All are selected"
End If
End Sub
3.2.9 The Option Box
The Option Box control also lets the user selects one of the choices. However, two or more Option Boxes must work together because as one of the Option Boxes is selected, the other Option Boxes will be unselected. In fact, only one Option Box can be selected at one time. When an option box is selected, its value is set to “True” and when it is unselected; its value is set to “False”. In the following example, the shape control is placed in the form together with six Option Boxes. When the user clicks on different option boxes, different shapes will appear. The values of the shape control are 0, 1, and 2,3,4,5 which will make it appear as a rectangle, a square, an oval shape, a rounded rectangle and a rounded square respectively.
Example 3.5
Private Sub Option1_Click ( )
Shape1.Shape = 0
End Sub
Private Sub Option2_Click()
Shape1.Shape = 1
End Sub
Private Sub Option3_Click()
Shape1.Shape = 2
End Sub
Private Sub Option4_Click()
Shape1.Shape = 3
End Sub
Private Sub Option5_Click()
Shape1.Shape = 4
End Sub
Private Sub Option6_Click()
Shape1.Shape = 5
End Sub
3.2.10 The Drive List Box
The Drive ListBox is for displaying a list of drives available in your computer. When you place this control into the form and run the program, you will be able to select different drives from your computer as shown in Figure 3.3
Figure 3.3 The Drive List Box
3.2.11 The Directory List Box
The Directory List Box is for displaying the list of directories or folders in a selected drive. When you place this control into the form and run the program, you will be able to select different directories from a selected drive in your computer as shown in Figure 3.4
Figure 3.4 The Directory List Box
3.2.12 The File List Box
The File List Box is for displaying the list of files in a selected directory or folder. When you place this control into the form and run the program, you will be able to shown the list of files in a selected directory as shown in Figure 3.5
You can coordinate the Drive List Box, the Directory List Box and the File List Box to search for the files you want. The procedure will be discussed in later lessons.
Writing the Code
In lesson 2, you have learned how to enter the program code and run the sample VB programs but without much understanding about the logics of VB programming. Now, let’s get down to learning some basic rules about writing the VB program code.
Each control or object in VB can usually run many kinds of events or procedures; these events are listed in the dropdown list in the code window that is displayed when you double-click on an object and click on the procedures’ box(refer to Figure 2.3). Among the events are loading a form, clicking of a command button, pressing a key on the keyboard or dragging an object and more. For each event, you need to write an event procedure so that it can perform an action or a series of actions
To start writing an event procedure, you need to double-click an object. For example, if you want to write an event procedure when a user clicks a command button, you double-click on the command button and an event procedure will appear as shown in Figure 2.1. It takes the following format:
Private Sub Command1_Click
(Key in your program code here)
End Sub
You then need to key-in the procedure in the space between Private Sub Command1_Click............. End Sub. Sub actually stands for sub procedure that made up a part of all the procedures in a program. The program code is made up of a number of statements that set certain properties or trigger some actions. The syntax of Visual Basic’s program code is almost like the normal English language though not exactly the same, so it is very easy to learn.
The syntax to set the property of an object or to pass certain value to it is :
Object.Property
where Object and Property is separated by a period (or dot). For example, the statement Form1.Show means to show the form with the name Form1, Iabel1.Visible=true means label1 is set to be visible, Text1.text=”VB” is to assign the text VB to the text box with the name Text1, Text2.text=100 is to pass a value of 100 to the text box with the name text2, Timer1.Enabled=False is to disable the timer with the name Timer1 and so on. Let’s examine a few examples below:
Example 4.1
Private Sub Command1_click
Label1.Visible=false
Label2.Visible=True
Text1.Text=”You are correct!”
End sub
Example 4.2
Private Sub Command1_click
Label1.Caption=” Welcome”
Image1.visible=true
End sub
Example 4.3
Private Sub Command1_click
Pictuire1.Show=true
Timer1.Enabled=True
Lable1.Caption=”Start Counting
End sub
In Example 4.1, clicking on the command button will make label1 become invisible and label2 become visible; and the text” You are correct” will appear in TextBox1. In example 4.2, clicking on the command button will make the caption label1 change to “Welcome” and Image1 will become visible. In example 4.3 , clicking on the command button will make Picture1 show up, timer starts running and the caption of label1 change to “Start Counting”.
Syntaxes that do not involve setting of properties are also English-like, some of the commands are Print, If…Then….Else….End If, For…Next, Select Case…..End Select , End and Exit Sub. For example, Print “ Visual Basic” is to display the text Visual Basic on screen and End is to end the program. Other commands will be explained in details in the coming lessons.
Program code that involve calculations is very easy to write, you need to write them almost like you do in mathematics. However, in order to write an event procedure that involves calculations, you need to know the basic arithmetic operators in VB as they are not exactly the same as the normal operators we use, except for + and - . For multiplication, we use *, for division we use /, for raising a number x to the power of n, we use x ^n and for square root, we use Sqr(x). VB offers many more advanced mathematical functions such as Sin, Cos, Tan and Log, they will be discussed in lesson 10. There are also two important functions that are related to arithmetic operations, i.e. the functions Val and Str$ where Val is to convert text entered into a textbox to numerical value and Str$ is to display a numerical value in a textbox as a string (text). While the function Str$ is as important as VB can display a numeric values as string implicitly, failure to use Val will results in wrong calculation. Let’s examine example 4.4 and example 4.5.
Example 4.4
Private Sub Form_Activate()
Text3.text=text1.text+text2.text
End Sub
Example 4.5
Private Sub Form_Activate()
Text3.text=val(text1.text)+val(text2.text)
End Sub
When you run the program in example 4.4 and enter 12 in textbox1 and 3 in textbox2 will give you a result of 123, which is wrong. It is because VB treat the numbers as string and so it just joins up the two strings. On the other hand, running exampled 4.5 will give you the correct result, i.e., 15.
Lesson 5: Managing Visual Basic Data
There are many types of data that we come across in our daily life. For example, we need to handle data such as names, addresses, money, date, stock quotes, statistics and more everyday. Similarly in Visual Basic, we have to deal with all sorts of of data, some can be mathematically calculated while some are in the form of text or other forms. VB divides data into different types so that it is easier to manage when we need to write the code involving those data.
5.1 Visual Basic Data Types
Visual Basic classifies the information mentioned above into two major data types, they are the numeric data types and the non-numeric data types.
5.1.1 Numeric Data Types
Numeric data types are types of data that consist of numbers, which can be computed mathematically with various standard operators such as add, minus, multiply, divide and more. Examples of numeric data types are examination marks, height, weight, the number of students in a class, share values, price of goods, monthly bills, fees and others. In Visual Basic, numeric data are divided into 7 types, depending on the range of values they can store. Calculations that only involve round figures or data that does not need precision can use Integer or Long integer in the computation. Programs that require high precision calculation need to use Single and Double decision data types, they are also called floating point numbers. For currency calculation , you can use the currency data types. Lastly, if even more precision is required to perform calculations that involve a many decimal points, we can use the decimal data types. These data types summarized in Table 5.1
Table 5.1: Numeric Data Types
Type Storage Range of Values
Byte 1 byte 0 to 255
Integer 2 bytes -32,768 to 32,767
Long 4 bytes -2,147,483,648 to 2,147,483,648
Single 4 bytes -3.402823E+38 to -1.401298E-45 for negative values
1.401298E-45 to 3.402823E+38 for positive values.
Double 8 bytes -1.79769313486232e+308 to -4.94065645841247E-324 for negative values
4.94065645841247E-324 to 1.79769313486232e+308 for positive values.
Currency 8 bytes -922,337,203,685,477.5808 to 922,337,203,685,477.5807
Decimal 12 bytes +/- 79,228,162,514,264,337,593,543,950,335 if no
decimal is use
+/- 7.9228162514264337593543950335 (28 decimal places).
5.1.2 Non-numeric Data Types
Nonnumeric data types are data that cannot be manipulated mathematically using standard arithmetic operators. The non-numeric data comprises text or string data types, the Date data types, the Boolean data types that store only two values (true or false), Object data type and Variant data type .They are summarized in Table 5.2
Table 5.2: Nonnumeric Data Types
Data Type Storage Range
String(fixed length) Length of string 1 to 65,400
characters
String(variable length) Length + 10 bytes 0 to 2 billion characters
Date 8 bytes January 1, 100 to December 31,
9999
Boolean 2 bytes True or False
Object 4 bytes Any embedded object
Variant(numeric) 16 bytes Any value as large as Double
Variant(text) Length+22 bytes Same as variable-length string
5.1.3 Suffixes for Literals
Literals are values that you assign to data. In some cases, we need to add a suffix behind a literal so that VB can handle the calculation more accurately. For example, we can use num=1.3089# for a Double type data. Some of the suffixes are displayed in Table 5.3.
Table 5.3
Suffix Data Type
& Long
! Single
# Double
@ Currency
In addition, we need to enclose string literals within two quotations and date and time literals within two # sign. Strings can contain any characters, including numbers. The following are few examples:
memberName="Turban, John."
TelNumber="1800-900-888-777"
LastDay=#31-Dec-00#
ExpTime=#12:00 am#
5.2 Managing Variables
Variables are like mail boxes in the post office. The contents of the variables changes every now and then, just like the mail boxes. In term of VB, variables are areas allocated by the computer memory to hold data. Like the mail boxes, each variable must be given a name. To name a variable in Visual Basic, you have to follow a set of rules.
5.2.1 Variable Names
The following are the rules when naming the variables in Visual Basic
* It must be less than 255 characters
* No spacing is allowed
* It must not begin with a number
* Period is not permitted
Examples of valid and invalid variable names are displayed in Table 5.4
Valid Name Invalid Name
My_Car My.Car
This Year 1NewBoy
Long_Name_Can_beUSE He&HisFather *& is not acceptable
5.2.2 Declaring Variables
In Visual Basic, one needs to declare the variables before using them by assigning names and data types. They are normally declared in the general section of the codes' windows using the Dim statement.
The format is as follows:
Dim Variable Name As Data Type
Example 5.1
Dim password As String
Dim yourName As String
Dim firstnum As Integer
Dim secondnum As Integer
Dim total As Integer
Dim doDate As Date
You may also combine them in one line , separating each variable with a comma, as follows:
Dim password As String, yourName As String, firstnum As Integer,.............
If data type is not specified, VB will automatically declare the variable as a Variant.
For string declaration, there are two possible formats, one for the variable-length string and another for the fixed-length string. For the variable-length string, just use the same format as example 5.1 above. However, for the fixed-length string, you have to use the format as shown below:
Dim VariableName as String * n, where n defines the number of characters the string can hold.
Example 5.2:
Dim yourName as String * 10
yourName can holds no more than 10 Characters.
5.3 Constants
Constants are different from variables in the sense that their values do not change during the running of the program.
5.3.1 Declaring a Constant
The format to declare a constant is
Const Constant Name As Data Type = Value
Example 5.3
Const Pi As Single=3.142
Const Temp As Single=37
Const Score As Single=100
6.1 Assigning Values to Variables
After declaring various variables using the Dim statements, we can assign values to those variables. The general format of an assignment is
Variable=Expression
The variable can be a declared variable or a control property value. The expression could be a mathematical expression, a number, a string, a Boolean value (true or false) and more. The following are some examples:
firstNumber=100
secondNumber=firstNumber-99
userName="John Lyan"
userpass.Text = password
Label1.Visible = True
Command1.Visible = false
Label4.Caption = textbox1.Text
ThirdNumber = Val(usernum1.Text)
total = firstNumber + secondNumber+ThirdNumber
6.2 Operators in Visual Basic
To compute inputs from users and to generate results, we need to use various mathematical operators. In Visual Basic, except for + and -, the symbols for the operators are different from normal mathematical operators, as shown in Table 6.1.
Table 6.1: Arithmetic Operators
Operator Mathematical function Example
^ Exponential 2^4=16
* Multiplication 4*3=12, (5*6))2=60
/ Division 12/4=3
Mod Modulus(return the remainder
from an integer division) 15 Mod 4=3 255 mod 10=5
\ Integer Division(discards
the decimal places) 19\4=4
+ or & String concatenation "Visual"&"Basic"="Visual Basic"
Example 6.1
Dim firstName As String
Dim secondName As String
Dim yourName As String
Private Sub Command1_Click()
firstName = Text1.Text
secondName = Text2.Text
yourName = secondName + " " + firstName
Label1.Caption = yourName
End Sub
In this example, three variables are declared as string. For variables firstName and secondName will receive their data from the user’s input into textbox1 and textbox2, and the variable yourName will be assigned the data by combining the first two variables. Finally, yourName is displayed on Label1.
Example 6.2
Dim number1, number2, number3 as Integer
Dim total, average as variant
Private sub Form_Click
number1=val(Text1.Text)
number2=val(Text2.Text)
number3= val(Text3.Text)
Total=number1+number2+number3
Average=Total/5
Label1.Caption=Total
Label2.Caption=Average
End Sub
In the example above, three variables are declared as integer and two variables are declared as variant. Variant means the variable can hold any data type. The program computes the total and average of the three numbers that are entered into three text boxes.
In previous lessons, we have learned how to create Visual Basic code that can accept input from the user and display the output without controlling the program flow. In this chapter, you will learn how to crreate VB code that can make decision when it process input from the user, and control the program flow in the process. Decision making process is an important part of programming because it can help to solve practical problems intelligently so that it can provide useful output or feedback to the user. For example, we can write a program that can ask the computer to perform certain task until a certain condition is met.
7.1 Conditional Operators
To control the VB program flow, we can use various conditional operators. Basically, they resemble mathematical operators. Conditional operators are very powerful tools, they let the VB program compare data values and then decide what action to take, whether to execute a program or terminate the program and more. These operators are shown in Table 7.1.
7.2 Logical Operators
In addition to conditional operators, there are a few logical operators which offer added power to the VB programs. There are shown in Table 7.2.
Table 7.1: Conditional Operators
Operator Meaning
= Equal to
> More than
< Less Than
>= More than and equal
<= Less than and equal
<> Not Equal to
Table 7.2:Logical Operators
Operator Meaning
And Both sides must be true
or One side or other must be true
Xor One side or other must be true but not both
Not Negates truth
* You can also compare strings with the above operators. However, there are certain rules to follows: Upper case letters are less than lowercase letters, "A"<"B"<"C"<"D".......<"Z" and number are less than letters.
7.3 Using If.....Then.....Else Statements with Operators
To effectively control the VB program flow, we shall use If...Then...Else statement together with the conditional operators and logical operators.
The general format for the if...then...else statement is
If conditions Then
VB expressions
Else
VB expressions
End If
* any If..Then..Else statement must end with End If. Sometime it is not necessary to use Else.
Example:
Private Sub OK_Click()
firstnum=Val(usernum1.Text)
secondnum=Val(usernum2.Text)
If total=firstnum+secondnum And Val(sum.Text)<>0 Then
correct.Visible = True
wrong.Visible = False
Else
correct.Visible = False
wrong.Visible = True
End If
End Sub
In the previous lesson, we have learned how to control the program flow using the If...ElseIf control structure. In this chapter, you will learn another way to control the program flow, that is, the Select Case control structure. However, the Select Case control structure is slightly different from the If....ElseIf control structure . The difference is that the Select Case control structure basically only make decision on one expression or dimension (for example the examination grade) while the If ...ElseIf statement control structure may evaluate only one expression, each If....ElseIf statement may also compute entirely different dimensions. Select Case is preferred when there exist many different conditions because using If...Then..ElseIf statements might become too messy.
The format of the Select Case control structure is show below:
Select Case expression
Case value1
Block of one or more VB statements
Case value2
Block of one or more VB Statements
Case value3
.
.
Case Else
Block of one or more VB Statements
End Select
Example 8.1
Dim grade As String
Private Sub Compute_Click( )
grade=txtgrade.Text
Select Case grade
Case "A"
result.Caption="High Distinction"
Case "A-"
result.Caption="Distinction"
Case "B"
result.Caption="Credit"
Case "C"
result.Caption="Pass"
Case Else
result.Caption="Fail"
End Select
End Sub
Example 8.2
Dim mark As Single
Private Sub Compute_Click()
'Examination Marks
mark = mrk.Text
Select Case mark
Case Is >= 85
comment.Caption = "Excellence"
Case Is >= 70
comment.Caption = "Good"
Case Is >= 60
comment.Caption = "Above Average"
Case Is >= 50
comment.Caption = "Average"
Case Else
comment.Caption = "Need to work harder"
End Select
End Sub
Example 8.3
Example 8.2 could be rewritten as follows:
Dim mark As Single
Private Sub Compute_Click()
'Examination Marks
mark = mrk.Text
Select Case mark
Case 0 to 49
comment.Caption = "Need to work harder"
Case 50 to 59
comment.Caption = "Average"
Case 60 to 69
comment.Caption = "Above Average"
Case 70 to 84
comment.Caption = "Good"
Case Else
comment.Caption = "Excellence"
End Select
End Sub
Visual Basic allows a procedure to be repeated many times as long as the processor until a condition or a set of conditions is fulfilled. This is generally called looping . Looping is a very useful feature of Visual Basic because it makes repetitive works easier. There are two kinds of loops in Visual Basic, the Do...Loop and the For.......Next loop
9.1 Do Loop
The formats are
a) Do While condition
Block of one or more VB statements
Loop
b) Do
Block of one or more VB statements
Loop While condition
c) Do Until condition
Block of one or more VB statements
Loop
d) Do
Block of one or more VB statements
Loop Until condition
9.2 Exiting the Loop
Sometime we need exit to exit a loop prematurely because of a certain condition is fulfilled. The syntax to use is known as Exit Do. You can examine Example 9.2 for its usage.
9.3 For....Next Loop
The format is:
For counter=startNumber to endNumber (Step increment)
One or more VB statements
Next
Please refer to example 9.3a,9.3b and 9.3 c for its usage.
Sometimes the user might want to get out from the loop before the whole repetitive process is executed, the command to use is Exit For. To exit a For….Next Loop, you can place the Exit For statement within the loop; and it is normally used together with the If…..Then… statement. Let’s examine example 9.3 d.
Example 9.1
Do while counter <=1000
num.Text=counter
counter =counter+1
Loop
* The above example will keep on adding until counter >1000.
The above example can be rewritten as
Do
num.Text=counter
counter=counter+1
Loop until counter>1000
Example 9.2
Dim sum, n As Integer
Private Sub Form_Activate()
List1.AddItem "n" & vbTab & "sum"
Do
n = n + 1
Sum = Sum + n
List1.AddItem n & vbTab & Sum
If n = 100 Then
Exit Do
End If
Loop
End Sub
Explanation
In the above example, we compute the summation of 1+2+3+4+……+100. In the design stage, you need to insert a ListBox into the form for displaying the output, named List1. The program uses the AddItem method to populate the ListBox. The statement List1.AddItem "n" & vbTab & "sum" will display the headings in the ListBox, where it uses the vbTab function to create a space between the headings n and sum.
Example 9.3 a
For counter=1 to 10
display.Text=counter
Next
Example 9.3 b
For counter=1 to 1000 step 10
counter=counter+1
Next
Example 9.3 c
For counter=1000 to 5 step -5
counter=counter-10
Next
*Notice that increment can be negative
Example 9.3 d
Private Sub Form_Activate( )
For n=1 to 10
If n>6 then
Exit For
End If
Else
Print n
End If
End Sub
Lesson 10: Introduction to VB Built-in Functions
A function is similar to a normal procedure but the main purpose of the function is to accept a certain input from the user and return a value which is passed on to the main program to finish the execution. There are two types of functions, the built-in functions (or internal functions) and the functions created by the programmers.
The general format of a function is
FunctionName (arguments)
The arguments are values that are passed on to the function.
In this lesson, we are going to learn two very basic but useful internal functions of Visual basic , i.e. the MsgBox( ) and InputBox ( ) functions.
10.1 MsgBox ( ) Function
The objective of MsgBox is to produce a pop-up message box and prompt the user to click on a command button before he /she can continues. This format is as follows:
yourMsg=MsgBox(Prompt, Style Value, Title)
The first argument, Prompt, will display the message in the message box. The Style Value will determine what type of command buttons appear on the message box, please refer Table 10.1 for types of command button displayed. The Title argument will display the title of the message board.
Table 10.1: Style Values
Style Value Named Constant Buttons Displayed
0 vbOkOnly Ok button
1 vbOkCancel Ok and Cancel buttons
2 vbAbortRetryIgnore Abort, Retry and Ignore buttons.
3 vbYesNoCancel Yes, No and Cancel buttons
4 vbYesNo Yes and No buttons
5 vbRetryCancel Retry and Cancel buttons
We can use named constant in place of integers for the second argument to make the programs more readable. In fact, VB6 will automatically shows up a list of names constant where you can select one of them.
Example: yourMsg=MsgBox( "Click OK to Proceed", 1, "Startup Menu")
and yourMsg=Msg("Click OK to Proceed". vbOkCancel,"Startup Menu")
are the same.
yourMsg is a variable that holds values that are returned by the MsgBox ( ) function. The values are determined by the type of buttons being clicked by the users. It has to be declared as Integer data type in the procedure or in the general declaration section. Table 10.2 shows the values, the corresponding named constant and buttons.
Table 10.2 : Return Values and Command Buttons
Value Named Constant Button Clicked
1 vbOk Ok button
2 vbCancel Cancel button
3 vbAbort Abort button
4 vbRetry Retry button
5 vbIgnore Ignore button
6 vbYes Yes button
7 vbNo No button
Example 10.1
i. The Interface:
You draw three command buttons and a label as shown in Figure 10.1
Figure 10.1
ii. The procedure for the test button:
Private Sub Test_Click()
Dim testmsg As Integer
testmsg = MsgBox("Click to test", 1, "Test message")
If testmsg = 1 Then
Display.Caption = "Testing Successful"
Else
Display.Caption = "Testing fail"
End If
End Sub
When a user click on the test button, the image like the one shown in Figure 10.2 will appear. As the user click on the OK button, the message "Testing successful" will be displayed and when he/she clicks on the Cancel button, the message "Testing fail" will be displayed.
Figure 10.2
To make the message box looks more sophisticated, you can add an icon besides the message. There are four types of icons available in VB as shown in Table 10.3
Table 10.3
Example 10.2
You draw the same Interface as in example 10.1 but modify the codes as follows:
Private Sub test2_Click()
Dim testMsg2 As Integer
testMsg2 = MsgBox("Click to Test", vbYesNoCancel + vbExclamation, "Test Message")
If testMsg2 = 6 Then
display2.Caption = "Testing successful"
ElseIf testMsg2 = 7 Then
display2.Caption = "Are you sure?"
Else
display2.Caption = "Testing fail"
End If
End Sub
In this example, the following message box will be displayed:
Figure 10.3
10.2 The InputBox( ) Function
An InputBox( ) function will display a message box where the user can enter a value or a message in the form of text. The format is
myMessage=InputBox(Prompt, Title, default_text, x-position, y-position)
myMessage is a variant data type but typically it is declared as string, which accept the message input by the users. The arguments are explained as follows:
* Prompt - The message displayed normally as a question asked.
* Title - The title of the Input Box.
* default-text - The default text that appears in the input field where users can use it as his intended input or he may change to the message he wish to key in.
* x-position and y-position - the position or the coordinate of the input box.
Example 10.3
i. The Interface
Figure 10.4
ii. The procedure for the OK button
Private Sub OK_Click()
Dim userMsg As String
userMsg = InputBox("What is your message?", "Message Entry Form", "Enter your messge here", 500, 700)
If userMsg <> "" Then
message.Caption = userMsg
Else
message.Caption = "No Message"
End If
End Sub
When a user click the OK button, the input box as shown in Figure 10.5 will appear. After user entering the message and click OK, the message will be displayed on the caption, if he click Cancel, "No message" will be displayed.
Lesson 11: Mathematical Functions
The mathematical functions are very useful and important in programming because very often we need to deal with mathematical concepts in programming such as chance and probability, variables, mathematical logics, calculations, coordinates, time intervals and etc. The common mathematical functions in Visual Basic are Rnd, Sqr, Int, Abs, Exp, Log, Sin, Cos, Tan , Atn, Fix and Round.
(i) Rnd is very useful when we deal with the concept of chance and probability. The Rnd function returns a random value between 0 and 1. In Example 1. When you run the program, you will get an output of 10 random numbers between 0 and 1. Randomize Timer is a vital statement here as it will randomize the process.
Example 1:
Private Sub Form_Activate
Randomize Timer
For x=1 to 10
Print Rnd
Next x
End Sub
The Output for example 1 is shown below:
Random numbers in its original form are not very useful in programming until we convert them to integers. For example, if we need to obtain a random output of 6 random integers ranging from 1 to 6, which make the program behave as a virtual die, we need to convert the random numbers using the format Int(Rnd*6)+1. Let’s study the following example:
In this example, Int(Rnd*6) will generate a random integer between 0 and 5 because the function Int truncates the decimal part of the random number and returns an integer. After adding 1, you will get a random number between 1 and 6 every time you click the command button. For example, let say the random number generated is 0.98, after multiplying it by 6, it becomes 5.88, and using the integer function Int(5.88) will convert the number to 5; and after adding 1 you will get 6.
In this example, you place a command button and change its caption to ‘roll die’. You also need to insert a label into the form and clear its caption at the designing phase and make its font bigger and bold. Then set the border value to 1 so that it displays a border; and after that set the alignment to center. The statement Label1.Caption=Num means the integer generated will be displayed as the caption of the label.
Example 2:
Dim num as integer
Private Sub Command1_Click ( )
Randomize Timer
Num=Int(Rnd*6)+1
Label1.Caption=Num
End Sub
Now, run the program and then click on the roll die button, you will get an output like the figure below:
The Numeric Functions
The numeric functions are Int, Sqr, Abs, Exp, Fix, Round and Log.
a) Int is the function that converts a number into an integer by truncating its decimal part and the resulting integer is the largest integer that is smaller than the number. For example, Int(2.4)=2, Int(4.8)=4, Int(-4.6)= -5, Int(0.032)=0 and so on.
b) Sqr is the function that computes the square root of a number. For example, Sqr(4)=2, Sqr(9)=2 and etc.
c) Abs is the function that returns the absolute value of a number. So Abs(-8) = 8 and Abs(8)= 8.
d) Exp of a number x is the value of ex. For example, Exp(1)=e1 = 2.7182818284590
e) Fix and Int are the same if the number is a positive number as both truncate the decimal part of the number and return an integer. However, when the number is negative, it will return the smallest integer that is larger than the number. For example, Fix(-6.34)= -6 while Int(-6.34)=-7.
f) Round is the function that rounds up a number to a certain number of decimal places. The Format is Round (n, m) which means to round a number n to m decimal places. For example, Round (7.2567, 2) =7.26
g) Log is the function that returns the natural Logarithm of a number. For example,
Log 10= 2.302585
Example 3
This example computes the values of Int(x), Fix(x) and Round(x,n) in a table form. It uses the Do Loop statement and the Rnd function to generate 10 numbers. The statement x = Round (Rnd * 7, 7) rounds a random number between 0 and 7 to 7 decimal places. Using commas in between items will create spaces between them and hence a table of values can be created. The program and output are shown below
Private Sub Form_Activate ()
n = 1
Print " n", " x", "Int(x)", "Fix(x)", "Round(x, 4)"
Do While n < 11
Randomize Timer
x = Round (Rnd * 7, 7)
Print n, x, Int(x), Fix(x), Round(x, 4)
n = n + 1
Loop
End Sub
Lesson 12: Formatting Functions
Formatting output is a very important part of programming so that the data can be presented systematically and clearly to the users. Data in the previous lesson were presented fairly systematically through the use of commas and some of the functions like Int, Fix and Round. However, to have better control of the output format, we can use a number of formatting functions in Visual basic.
The three most common formatting functions in VB are Tab, Space, and Format
(i) The Tab function
Tab (n); x
The item x will be displayed at a position that is n spaces from the left border of the output form. There must be a semicolon in between Tab and the items you intend to display (VB will actually do it for you automatically).
Example1
.Private Sub Form_Activate
Print "I"; Tab(5); "like"; Tab(10); "to"; Tab(15); "learn"; Tab(20); "VB"
Print Tab(10); "I"; Tab(15); "like"; Tab(20); "to"; Tab(25); "learn"; Tab(20); "VB"
Print Tab(15); "I"; Tab(20); ; "like"; Tab(25); "to"; Tab(30); "learn"; Tab(35); “VB"
End sub
The Output for example 1 is shown below:
(ii) The Space function
The Space function is very closely linked to the Tab function. However, there is a minor difference. While Tab (n) means the item is placed n spaces from the left border of the screen, the Space function specifies the number of spaces between two consecutive items. For example, the procedure
Example 2
Private Sub Form_Activate()
Print "Visual"; Space(10); "Basic"
End Sub
Means that the words Visual and Basic will be separated by 10 spaces
(iii) The Format function
The Format function is a very powerful formatting function which can display the numeric values in various forms. There are two types of Format function, one of them is the built-in or predefined format while another one can be defined by the users.
(i) The format of the predefined Format function is
Format (n, “style argument”)
where n is a number and the list of style arguments is given in the table
Style argument Explanation Example
General Number To display the number without Format(8972.234, “General
having separators between thousands.
Number”)=8972.234
Fixed To display the number without having separators between thousands and rounds it up to two decimal places. Format(8972.2, “Fixed”)=8972.23
Standard To display the number with separators or separators between thousands and rounds it up to two decimal places. Format(6648972.265, “Standard”)= 6,648,972.27
Currency To display the number with the dollar sign in front, has separators between thousands as well as rounding it up to two decimal places. Format(6648972.265, “Currency”)= $6,648,972.27
Percent Converts the number to the percentage form and displays a % sign and rounds it up to two decimal places. Format(0.56324, “Percent”)=56.32 %
Example 3
Private Sub Form_Activate()
Print Format (8972.234, "General Number")
Print Format (8972.2, "Fixed")
Print Format (6648972.265, "Standard")
Print Format (6648972.265, "Currency")
Print Format (0.56324, "Percent")
End Sub
Now, run the program and you will get an output like the figure below:
Lesson 13: String Manipulation Functions
In this lesson, we will learn how to use some of the string manipulation function such as Len, Right, Left, Mid, Trim, Ltrim, Rtrim, Ucase, Lcase, Instr, Val, Str ,Chr and Asc.
(i)The Len Function
The length function returns an integer value which is the length of a phrase or a sentence, including the empty spaces. The format is
Len (“Phrase”)
For example,
Len (VisualBasic) = 11 and Len (welcome to VB tutorial) = 22
The Len function can also return the number of digits or memory locations of a number that is stored in the computer. For example,
Private sub Form_Activate ( )
X=sqr (16)
Y=1234
Z#=10#
Print Len(x), Len(y), and Len (z)
End Sub
will produce the output 1, 4 , 8. The reason why the last value is 8 is because z# is a double precision number and so it is allocated more memory spaces.
(ii) The Right Function
The Right function extracts the right portion of a phrase. The format is
Right (“Phrase”, n)
Where n is the starting position from the right of the phase where the portion of the phrase is going to be extracted. For example,
Right(“Visual Basic”, 4) = asic
(iii)The Left Function
The Left$ function extract the left portion of a phrase. The format is
Left(“Phrase”, n)
Where n is the starting position from the left of the phase where the portion of the phrase is going to be extracted. For example,
Left (“Visual Basic”, 4) = Visu
(iv) The Ltrim Function
The Ltrim function trims the empty spaces of the left portion of the phrase. The format is
Ltrim(“Phrase”)
.For example,
Ltrim (“ Visual Basic”, 4)= Visual basic
(v) The Rtrim Function
The Rtrim function trims the empty spaces of the right portion of the phrase. The format is
Rtrim(“Phrase”)
.For example,
Rtrim (“Visual Basic ”, 4) = Visual basic
(vi) The Trim function
The Ttrim function trims the empty spaces on both side of the phrase. The format is
Trim(“Phrase”)
.For example,
Trim (“ Visual Basic ”) = Visual basic
(viii) The Mid Function
The Mid function extracts a substring from the original phrase or string. It takes the following format:
Mid(phrase, position, n)
Where position is the starting position of the phrase from which the extraction process will start and n is the number of characters to be extracted. For example,
Mid(“Visual Basic”, 3, 6) = ual Bas
(ix) The InStr function
The InStr function looks for a phrase that is embedded within the original phrase and returns the starting position of the embedded phrase. The format is
Instr (n, original phase, embedded phrase)
Where n is the position where the Instr function will begin to look for the embedded phrase. For example
Instr(1, “Visual Basic”,” Basic”)=8
(x) The Ucase and the Lcase functions
The Ucase function converts all the characters of a string to capital letters. On the other hand, the Lcase function converts all the characters of a string to small letters. For example,
Ucase(“Visual Basic”) =VISUAL BASiC
Lcase(“Visual Basic”) =visual basic
(xi) The Str and Val functions
The Str is the function that converts a number to a string while the Val function converts a string to a number. The two functions are important when we need to perform mathematical operations.
(xii) The Chr and the Asc functions
The Chr function returns the string that corresponds to an ASCII code while the Asc function converts an ASCII character or symbol to the corresponding ASCII code. ASCII stands for “American Standard Code for Information Interchange”. Altogether there are 255 ASCII codes and as many ASCII characters. Some of the characters may not be displayed as they may represent some actions such as the pressing of a key or produce a beep sound. The format of the Chr function is
Chr(charcode)
and the format of the Asc function is
Asc(Character)
The following are some examples:
Chr(65)=A, Chr(122)=z, Chr(37)=% , Asc(“B”)=66, Asc(“&”)=38
Lesson 14: Creating User-Defined Functions
14.1 Creating Your Own Function
The general format of a function is as follows:
Public Function functionName (Arg As dataType,..........) As dataType
or
Private Function functionName (Arg As dataType,..........) As dataType
* Public indicates that the function is applicable to the whole project and
Private indicates that the function is only applicable to a certain module or procedure.
Example 14.1
In this example, a user can calculate the future value of a certain amount of money he has today based on the interest rate and the number of years from now, supposing he will invest this amount of money somewhere .The calculation is based on the compound interest rate.
The code
Public Function FV(PV As Variant, i As Variant, n As Variant) As Variant
'Formula to calculate Future Value(FV)
'PV denotes Present Value
FV = PV * (1 + i / 100) ^ n
End Function
Private Sub compute_Click()
'This procedure will calculate Future Value
Dim FutureVal As Variant
Dim PresentVal As Variant
Dim interest As Variant
Dim period As Variant
PresentVal = PV.Text
interest = rate.Text
period = years.Text
'calling the funciton
FutureVal = FV(PresentVal, interest, period)
MsgBox ("The Future Value is " & FutureVal)
End Sub
The Code
Public Function grade(mark As Variant) As String
Select Case mark
Case Is >= 80
grade = "A"
Case Is >= 70
grade = "B"
Case Is >= 60
grade = "C"
Case Is >= 50
grade = "D"
Case Is >= 40
grade = "E"
Case Else
grade = "F"
End Select
End Function
Private Sub compute_Click()
grading.Caption = grade(mark)
End Sub
Example 14.2
The following program will automatically compute examination grades based on the marks that a student obtained. The code is shown on the right.
Lesson 15: Creating VBA Functions For MS Excel15.1 The Needs to Create VBA Functions in MS-Excel
You can create your own functions to supplement the built-in functions in Microsoft Excel spreadsheet, which are quite limited in some aspects. These user-defined functions are also called Visual Basic for Applications functions, or simply VBA functions. They are very useful and powerful if you know how to program them properly. One main reason we need to create user defined functions is to enable us to customize our spreadsheet environment for individual needs. For example, we might need a function that could calculate commissions payment based on the sales volume, which is quite difficult if not impossible by using the built-in functions alone. The code for VBA is illustrated on the right.
Table 15.1: Commissions Payment Table
Sales Volume($) Commissons
<500 3%
<1000 6%
<2000 9%
<5000 12%
>5000 15%
In table 15.1, when a salesman attain a sale volume of $6000, he will be paid $6000x15%=$720.00. A visual basic function to calculate the commissions can be written as follows:
Function Comm(Sales_V As Variant) as Variant
If Sales_V <500 Then
Comm=Sales_V*0.03
Elseif Sales_V>=500 and Sales_V<1000 Then
Comm=Sales_V*0.06
Elseif Sales_V>=1000 and Sales_V<2000 Then
Comm=Sales_V*0.09
Elseif Sales_V>=200 and Sales_V<5000 Then
Comm=Sales_V*0.12
Elseif Sales_V>=5000 Then
Comm=Sales_V*0.15
End If
End Function
15.2 Using Microsoft Excel Visual Basic Editor
To create VBA functions in MS Excel, you can click on tools,
select macro and then click on Visual Basic Editor as shown in Figure 15.1
Figure 15.1: Inserting MS_Excel Visual Basic Editor
Upon clicking the Visual Basic Editor, the VB Editor windows will appear as shown in figure 15.2. To create a function, type in the function as illustrated in section 15.1 above After typing, save the file and then return to the Excel windows.
Figure 15.2 : The VB Editor
In the Excel window, type in the titles Sales Volume and Commissions in any two cells. By referring to figure 15.3, key-in the Comm function at cell C4 and by referencing the value in cell B4, using the format Comm(B4). Any value appear in cell B4 will pass the value to the Comm function in cell C4. For the rest of the rows, just copy the formula by dragging the bottom right corner of cell C4 to the required cells, a nice and neat table that shows the commissions will automatically appear (as shown in figure 15.3). It can also be updated anytime
Figure 15.3: MS Excel Windows- Sales Volume
Lesson 16: Arrays
16.1 Introduction to Arrays
By definition, an array is a list of variables, all with the same data type and name. When we work with a single item, we only need to use one variable. However, if we have a list of items which are of similar type to deal with, we need to declare an array of variables instead of using a variable for each item. For example, if we need to enter one hundred names, we might have difficulty in declaring 100 different names, this is a waste of time and efforts. So, instead of declaring one hundred different variables, we need to declare only one array. We differentiate each item in the array by using subscript, the index value of each item, for example name(1), name(2),name(3) .......etc. , which will make declaring variables streamline and much systematic.
16.2 Dimension of an Array
An array can be one dimensional or multidimensional. One dimensional array is like a list of items or a table that consists of one row of items or one column of items. A twodimensional array will be a table of items that make up of rows and columns. While the format for a one dimensional array is ArrayName(x), the format for a two dimensional array is ArrayName(x,y) while a three dimensional array is ArrayName(x,y,z) . Normally it is sufficient to use one dimensional and two dimensional array ,you only need to use higher dimensional arrays if you need with engineering problems or even some accounting problems.Let me illustrates the the arrays with tables.
Table 16.1. One dimensional Array
Student Name Name(1) Name(2) Name(3) Name(4) Name(5) Name(6)
Table 16.2 Two Dimensional Array
Name(1,1) Name(1,2) Name(1,3) Name(1,4)
Name(2,1) Name(2,2) Name(2,3) Name(2,4)
Name(3,1) Name(3,2) Name(3,3) Name(3,4)
16.2 Declaring Arrays
We could use Public or Dim statement to declare an array just as the way we declare a single variable. The Public statement declares an array that can be used throughout an application while the Dim statement declare an array that could be used only in a local procedure.
The general format to declare a one dimensional array is as follow:
Dim arrayName(subs) as dataType
where subs indicates the last subscript in the array.
Example 16.1
Dim CusName(10) as String
will declare an array that consists of 10 elements if the statement Option Base 1 appear in the declaration area, starting from CusName(1) to CusName(10). Otherwise, there will be 11 elements in the array starting from CusName(0) through to CusName(10)
CusName(1) CusName(2) CusName(3) CusName(4) CusName(5) CusName(6) CusName(7) CusName(8) CusName(9) CusName(10)
Example 16.2
Dim Count(100 to 500) as Integer
declares an array that consists of the first element starting from Count(100) and ends at Count(500)
The general format to declare a two dimensional array is as follow:
Dim ArrayName(Sub1,Sub2) as dataType
Example 16.3
Dim StudentName(10,10) will declare a 10x10 table make up of 100 students' Names, starting with StudentName(1,1) and end with StudentName(10,10).
16.3 Sample Programs
(i) The code
Dim studentName(10) As String
Dim num As Integer
Private Sub addName()
For num = 1 To 10
studentName(num) = InputBox("Enter the student name", "Enter Name", "", 1500, 4500)
If studentName(num) <> "" Then
Form1.Print studentName(num)
Else
End
End If
Next
End Sub
The above program accepts data entry through an input box and displays the entries in the form itself. As you can see, this program will only allows a user to enter 10 names each time he click on the start button.
(ii)
The Code
Dim studentName(10) As String
Dim num As Integer
Private Sub addName( )
For num = 1 To 10
studentName(num) = InputBox("Enter the student name")
List1.AddItem studentName(num)
Next
End Sub
Private Sub Start_Click()
addName
End Sub
The above program accepts data entries through an InputBox and displays the items in a list box.
Lesson 17: Working with Files
17.1 Introduction
Up until lesson 13 we are only creating programs that could accept data at runtime, when the program is terminated, the data also disappear. Is it possible to save data accepted by a VB program into a storage device, such as a hard disk or diskette, or even CDRW? The answer is possible. In this chapter, we will learn how to create files by writing them into a storage device and then retrieve the data by reading the contents of the files using a customized VB program.
17.2 Creating files
To create a file , we use the following command
Open "fileName" For Output As #fileNumber
Each file created must have a file name and a file number for identification. As for the file name, you must also specify the path where the file will reside.
Examples:
Open "c:\My Documents\sample.txt" For Output As #1
will create a text file by the name of sample.txt in My Document folder. The accompany file number is 1. If you wish to create and save the file in A drive, simply change the path, as follows"
Open "A:\sample.txt" For Output As #1
If you wish to create a HTML file , simply change the extension to .html
Open "c:\My Documents\sample.html" For Output As # 2
17.2.1 Sample Program : Creating a text file
Private Sub create_Click()
Dim intMsg As String
Dim StudentName As String
Open "c:\My Documents\sample.txt" For Output As #1
intMsg = MsgBox("File sample.txt opened")
StudentName = InputBox("Enter the student Name")
Print #1, StudentName
intMsg = MsgBox("Writing a" & StudentName & " to sample.txt ")
Close #1
intMsg = MsgBox("File sample.txt closed")
End Sub
* The above program will create a file sample.txt in the My Documents' folder and ready to receive input from users. Any data input by users will be saved in this text file.
17.3 Reading a file
To read a file created in section 17.2, you can use the input # statement. However, we can only read the file according to the format when it was written. You have to open the file according to its file number and the variable that hold the data. We also need to declare the variable using the DIM command.
17.3.1 Sample Program: Reading file
Private Sub Reading_Click()
Dim variable1 As String
Open "c:\My Documents\sample.txt" For Input As #1
Input #1, variable1
Text1.Text = variable1
Close #1
End Sub
* This program will open the sample.txt file and display its contents in the Text1 textbox.
Example 17.3.2 Creating and Reading files using Common Dialog Box
This example uses the common dialog box to create and read the text file, which is
much easier than the previous examples as many operations are handled by the
common dialog box. The following is the program:
Dim linetext As String
Private Sub open_Click()
CommonDialog1.Filter = "Text files{*.txt)|*.txt"
CommonDialog1.ShowOpen
If CommonDialog1.FileName <> "" Then
Open CommonDialog1.FileName For Input As #1
Do
Input #1, linetext
Text1.Text = Text1.Text & linetext
Loop Until EOF(1)
End If
Close #1
End Sub
Private Sub save_Click()
CommonDialog1.Filter = "Text files{*.txt)|*.txt"
CommonDialog1.ShowSave
If CommonDialog1.FileName <> "" Then
Open CommonDialog1.FileName For Output As #1
Print #1, Text1.Text
Close #1
End If
End Sub
The syntax CommonDialog1.Filter = "Text files{*.txt)|*.txt" ensures that only the textfile is read or saved .The statement CommonDialog1.ShowOpen is to display the open file dialog box and the statement CommonDialog1.ShowSave is to display thesave file dialog box. Text1.Text = Text1.Text & linetext is to read the data and display them in the Text1 textbox
The Output window is shown below:
Lesson 18: Graphics
Graphics is a very important part of visual basic programming as an attractive interface will be appealing to the users. In the old BASIC, drawing and designing graphics are considered as difficult jobs, as they have to be programmed line by line in a text-based environment. However, in Visual Basic, these jobs have been made easy. There are four basic controls in VB that you can use to draw graphics on your form: the line control, the shape control, the image box and the picture box
18.1The line and Shape controls
To draw a straight line, just click on the line control and then use your mouse to draw the line on the form. After drawing the line, you can then change its color, width and style using the BorderColor, BorderWidth and BorderStyle properties.
Similarly, to draw a shape, just click on the shape control and draw the shape on the form. The default shape is a rectangle, with the shape property set at 0. You can change the shape to square, oval, circle and rounded rectangle by changing the shape property’s value to 1, 2, 3 4, and 5 respectively. In addition, you can change its background color using the BackColor property, its border style using the BorderStyle property, its border color using the BorderColor pproperty as well its border width using the BorderWidth property.
Example 18.1
The program in this example allows the user to change the shape by selecting a particular shape from a list of options from a list box, as well as changing its color through a common dialog box.
The objects to be inserted in the form are a list box, a command button, a shape control and a common dialog box. The common dialog box can be inserted by clicking on ‘project’ on the menu and then select the Microsoft Common Dialog Control 6.0 by clicking the check box. After that, the Microsoft Common Dialog Control 6.0 will appear in the toolbox; and you can drag it into the form. The list of items can be added to the list box through the AddItem method. The procedure for the common dialog box to present the standard colors is as follows:
CommonDialog1.Flags = &H1&
CommonDialog1.ShowColor
Shape1.BackColor = CommonDialog1.Color
The last line will change the background color of the shape by clicking on a particular color on the common dialog box as shown in the Figure below:
The Interface.
The color dialog box
The Code
Private Sub Form_Load()
List1.AddItem "Rectangle"
List1.AddItem "Square"
List1.AddItem "Oval"
List1.AddItem "Circle"
List1.AddItem "Rounded Rectangle"
List1.AddItem "Rounded Square"
End Sub
Private Sub List1_Click()
Select Case List1.ListIndex
Case 0
Shape1.Shape = 0
Case 1
Shape1.Shape = 1
Case 2
Shape1.Shape = 2
Case 3
Shape1.Shape = 3
Case 4
Shape1.Shape = 4
Case 5
Shape1.Shape = 5
End Select
End Sub
Private Sub Command1_Click()
CommonDialog1.Flags = &H1&
CommonDialog1.ShowColor
Shape1.BackColor = CommonDialog1.Color
End Sub
18.2 The Image Box and the Picture Box
Using the line and shape controls to draw graphics will only enable you to create a simple design. In order to improve the look of the interface, you need to put in images and pictures of your own. Fortunately, there are two very powerful graphics tools you can use in Visual Basic which are the image box and the picture box.
To load a picture or image into an image box or a picture box, you can click on the picture property in the properties window and a dialog box will appear which will prompt the user to select a certain picture file. You can also load a picture at runtime by using the LoadPictrure ( ) method. The syntax is
Image1.Picture= LoadPicture("C:\path name\picture file name") or
picture1.Picture= LoadPicture("C:\path name\picture name")
For example, the following statement will load the grape.gif picture into the image box.
Image1.Picture= LoadPicture("C:\My Folder\VB program\Images\grape.gif")
Example 18.2
In this example, each time you click on the ‘change pictures’ button as shown in Figure 19.2, you will be able to see three images loaded into the image boxes. This program uses the Rnd function to generate random integers and then uses the LoadPicture method to load different pictures into the image boxes using the If…Then…Statements based on the random numbers generated. The output is shown in Figure 19.2 below
Dim a, b, c As Integer
Private Sub Command1_Click ()
Randomize Timer
a = 3 + Int(Rnd * 3)
b = 3 + Int(Rnd * 3)
c = 3 + Int(Rnd * 3)
If a = 3 Then
Image1(0).Picture = LoadPicture("C:\My Folder\VB program\Images\grape.gif")
End If
If a = 4 Then
Image1(0).Picture = LoadPicture("C:\My Folder\VB program\Images\cherry.gif")
End If
If a = 5 Then
Image1(0).Picture = LoadPicture("C:\My Folder\VB program\Images\orange.gif")
End If
If b = 3 Then
Image1(1).Picture = LoadPicture("C:\My Folder\VB program\Images\grape.gif")
End If
If b = 4 Then
Image1(1).Picture = LoadPicture("C:\My Folder\VB program\Images\cherry.gif")
End If
If b = 5 Then
Image1(1).Picture = LoadPicture("C:\My Folder\VB program\Images\orange.gif")
End If
If c = 3 Then
Image1(2).Picture = LoadPicture("C:\My Folder\VB program\Images\grape.gif")
End If
If c = 4 Then
Image1(2).Picture = LoadPicture("C:\My Folder\VB program\Images\cherry.gif")
End If
If c = 5 Then
Image1(2).Picture = LoadPicture("C:\My Folder\VB program\Images\orange.gif")
End If
End Sub
18.3 PSet, Line and Circle Drawing Methods
Other than using the line and shape controls to draw graphics on the form, you can also use the Pset, Line and Circle methods to draw graphics on the form.
(a) The Pset Method
The Pset method draw a dot on the screen, it takes the format
Pset (x , y ), color
(x,y) is the coordinates of the point and color is its color. To specify the color, you can use the color codes or the standard VB color constant such as VbRed, VbBlue, VbGeen and etc. For example, Pset(100,200), VbRed will display a red dot at the (100,200) coordinates.
The Pset method can also be used to draw a straight line on the form. The procedure is
For x= a to b
Pset(x,x)
Next x
This procedure will draw a line starting from the point (a,a) and to the point (b,b). For example, the following procedure will draw a magenta line from the point (0,0) to the point (1000,1000).
For x= 0 to 100
Pset(x,x) , vbMagenta
Next x
(b) The Line Method
Although the Pset method can be used to draw a straight line on the form, it is a little slow. It is better to use the Line method if you want to draw a straight line faster. The format of the Line command is shown below. It draws a line from the point (x1, y1) to the point (x2, y2) and the color constant will determine the color of the line.
Line (x1, y1)-(x2, y2), color
For example, the following command will draw a red line from the point (0, 0) to the point (1000, 2000).
Line (0, 0)-(1000, 2000), VbRed
The Line method can also be used to draw a rectangle. The format is
Line (x1-y1)-(x2, y2), color, B
The four corners of the rectangle are (x1-y1), (x2-y1), (x1-y2) and (x2, y2)
Another variation of the Line method is to fill the rectangle with a certain color. The format is
Line (x1, y1)-(x2, y2), color, BF
If you wish to draw the graphics in a picture box, you can use the following formats
· Picture1.Line (x1, y1)-(x2, y2), color
· Picture1.Line (x1-y1)-(x2, y2), color, B
· Picture1.Line (x1-y1)-(x2, y2), color, BF
· Picture1.Circle (x1, y1), radius, color
(c) The Circle Method
The circle method takes the following format
Circle (x1, y1), radius, color
That draws a circle centered at (x1, y1), with a certain radius and a certain border color. For example, the procedure
Circle (400, 400), 500, VbRed
draws a circle centered at (400, 400) with a radius of 500 twips and a red border.
Lesson 19: Creating Multimedia Applications-Part I
You can create various multimedia applications in VB that could play audio CD, audiofiles, VCD , video files and more.
To be able to play multimedia files or multimedia devices, you have to insert Microsoft Multimedia Control into your VB applications that you are going to create. However, Microsoft Multimedia Control is not normally included in the startup toolbox, therefore you need to add the MM control by pressing Ctrl+T and select it from the components dialog box that is displayed.
19.1 Creating a CD player
In this program, you can create a CD player that resembles an actual CD player. It allows the user select a track to play, to fast forward, to rewind and also to eject the CD. It can also display the track being played. The interface and code are shown below.
The Code
Private Sub Form_Load()
'To position the page at the center
Left = (Screen.Width - Width) \ 2
Top = (Screen.Height - Height) \ 2
'Initialize the CD
myCD.Command = "Open"
End Sub
Private Sub myCD_StatusUpdate()
'Update the track number
trackNum.Caption = myCD.Track
End Sub
Private Sub Next_Click()
myCD.Command = "Next"
End Sub
Private Sub Play_Click()
myCD.Command = "Play"
End Sub
Private Sub Previous_Click()
myCD.Command = "Prev"
End Sub
Private Sub Stop_Click()
myCD.Command = "Stop"
End Sub
Lesson 20: Creating Multimedia Applications-Part II
In previous lesson, we have programmed a CD player. Now, by making some modifications, you canl transform the CD player into an audio player. This player will be created in such a way that it could search for wave and midi files in your drives and play them.
In this project, you need to insert a ComboBox, a DriveListBox, a DirListBox, a TextBox and a FileListBox into your form. I Shall briefly discuss the function of each of the above controls. Besides, you must also insert Microsoft Multimedia Control(MMControl) into your form , you may make it visible or invisible. In my program, I choose to make it invisible so that I can use the command buttons created to control the player.
ComboBox- to display and enable selection of different type of files.
DriveListBox- to allow selection selection of different drives available on your PC.
DirListBox - To display directories
TextBox - To display selected files
FileListBox- To display files that are available
¡¡
¡¡
Relevant code must be written to coordinate all the above controls so that the application can work properly. The program should follow in the following logical way:
Step 1: User chooses the type of files he wants to play.
Step2:User selects the drive that might contains the relevant audio files.
Step 3:User looks into directories and subdirectories for the files specified in step1. The files should be displayed in the FileListBox.
Step 4: User selects the files from the FileListBox and click the Play button.
Step 5: User clicks on the Stop button to stop playing and Exit button to end the application.
The Interface
The Code
Private Sub Combo1_Change()
' to determine file type
If ListIndex = 0 Then
File1.Pattern = ("*.wav")
ElseIf ListIndex = 1 Then
File1.Pattern = ("*.mid")
Else
Fiel1.Pattern = ("*.*")
End If
End Sub
¡¡
Private Sub Dir1_Change()
'To change directories and subdirectories(or folders and subfolders)
File1.Path = Dir1.Path
If Combo1.ListIndex = 0 Then
File1.Pattern = ("*.wav")
ElseIf Combo1.ListIndex = 1 Then
File1.Pattern = ("*.mid")
Else
File1.Pattern = ("*.*")
End If
End Sub
¡¡
Private Sub play_Click()
'To play WaveAudio file or Midi File
Command2_Click
If Combo1.ListIndex = 0 Then
AudioPlayer.DeviceType = "WaveAudio"
ElseIf Combo1.ListIndex = 1 Then
AudioPlayer.DeviceType = "Sequencer"
End If
AudioPlayer.FileName = Text1.Text
AudioPlayer.Command = "Open"
AudioPlayer.Command = "Play"
¡¡
End Sub
Private Sub stop_Click()
If AudioPlayer.Mode = 524 Then Exit Sub
If AudioPlayer.Mode <> 525 Then
AudioPlayer.Wait = True
AudioPlayer.Command = "Stop"
End If
AudioPlayer.Wait = True
AudioPlayer.Command = "Close"
End Sub
Private Sub Drive1_Change()
'To change drives
Dir1.Path = Drive1.Drive
End Sub
Private Sub File1_Click()
If Combo1.ListIndex = 0 Then
File1.Pattern = ("*.wav")
ElseIf Combo1.ListIndex = 1 Then
File1.Pattern = ("*.mid")
Else
File1.Pattern = ("*.*")
End If
If Right(File1.Path, 1) <> "\" Then
filenam = File1.Path + "\" + File1.FileName
Else
filenam = File1.Path + File1.FileName
End If
Text1.Text = filenam
End Sub
Private Sub Form_Load()
'To center the Audioplayer startup page
Left = (Screen.Width - Width) \ 2
Top = (Screen.Height - Height) \ 2
Combo1.Text = "*.wav"
Combo1.AddItem "*.wav"
Combo1.AddItem "*.mid"
Combo1.AddItem "All files"
End Sub
Lesson 21: Creating Multimedia Applications-Part III
In lesson 20, we have created an audio player. Now, by making further modifications, you can transform the audio player into a picture viewer. This viewer will be created in such a way that it could search for all types of graphics files in your drives and displays them in a picture frame.
Similar to the previous project, in this project, you need to insert a ComboBox, a DriveListBox, a DirListBox, a TextBox and a FileListBox into your form. I Shall briefly explain again the function of each of the above controls.
ComboBox- to display and enable selection of different type of files.
DriveListBox- to allow selection selection of different drives available on your PC.
DirListBox - To display directories
TextBox - To display selected files
FileListBox- To display files that are available
¡¡
¡¡
Relevant codes must be written to coordinate all the above controls so that the application can work properly. The program should flow in the following logical way:
Step 1: User chooses the type of files he wants to play.
Step2:User selects the drive that might contains the relevant graphic files.
Step 3:User looks into directories and subdirectories for the files specified in step1. The files should be displayed in the FileListBox.
Step 4: User selects the files from the FileListBox and click the Show button.
Step 5: User clicks on Exit button to end the application.
The Code
Private Sub Form_Load()
'To center the player
Left = (Screen.Width - Width) \ 2
Top = (Screen.Height - Height)\2
Combo1.Text = "All graphic files"
Combo1.AddItem "All graphic files"
Combo1.AddItem "All files"
End Sub
Private Sub Combo1_Change()
If ListIndex = 0 Then
File1.Pattern = ("*.bmp;*.wmf;*.jpg;*.gif")
Else
Fiel1.Pattern = ("*.*")
End If
End Sub
'Specific the types of files to load
Private Sub Dir1_Change()
File1.Path = Dir1.Path
File1.Pattern = ("*.bmp;*.wmf;*.jpg;*.gif")
End Sub
'Changing Drives
Private Sub Drive1_Change()
Dir1.Path = Drive1.Drive
End Sub
Private Sub File1_Click()
If Combo1.ListIndex = 0 Then
File1.Pattern = ("*.bmp;*.wmf;*.jpg;*.gif")
Else
File1.Pattern = ("*.*")
EnId If
If Right(File1.Path, 1) <> "\" Then
filenam = File1.Path + "\" + File1.FileName
Else
filenam = File1.Path + File1.FileName
End If
Text1.Text = filenam
End Sub
Private Sub show_Click()
If Right(File1.Path, 1) <> "\" Then
filenam = File1.Path + "\" + File1.FileName
Else
filenam = File1.Path + File1.FileName
End If
'To load the picture into the picture box
picture1.Picture = LoadPicture(filenam)
End Sub
Lesson 22: Creating Multimedia Applications-Part IV:
A Multimedia Player
In lesson 20, we have created an audio player. Now, by making more modifications, you can transform the audio player into a multimedia player. This player will be able to search for all types of movie files and audio files. your drives and play them.
In this project, you need to insert a ComboBox, a DriveListBox, a DirListBox, a TextBox ,a FileListBox and a picture box (for playing movie) into your form. I Shall briefly discuss the function of each of the above controls. Besides, you must also insert Microsoft Multimedia Control(MMControl) into your form , you may make it visible or invisible. In my program, I choose to make it invisible so that I could use the command buttons created to control the player.
ComboBox- to display and enable selection of different type of files.
DriveListBox- to allow selection selection of different drives available on your PC.
DirListBox - To display directories
TextBox - To display selected files
FileListBox- To display files that are available
Relevant codes must be written to coordinate all the above controls so that the application can work properly. The program should flow in the following logical way:
Step 1: User chooses the type of files he wants to play.
Step2:User selects the drive that might contains the relevant audio files.
Step 3:User looks into directories and subdirectories for the files specified in step1. The files should be displayed in the FileListBox.
Step 4: User selects the files from the FileListBox and clicks the Play button.
Step 5: User clicks on the Stop button to stop playing and Exit button to end the application.
In lesson 20, we have created an audio player. Now, by making more modifications, you can transform the audio player into a multimedia player. This player will be able to search for all types of movie files and audio files. your drives and play them.
In this project, you need to insert a ComboBox, a DriveListBox, a DirListBox, a TextBox ,a FileListBox and a picture box (for playing movie) into your form. I Shall briefly discuss the function of each of the above controls. Besides, you must also insert Microsoft Multimedia Control(MMControl) into your form , you may make it visible or invisible. In my program, I choose to make it invisible so that I could use the command buttons created to control the player.
ComboBox- to display and enable selection of different type of files.
DriveListBox- to allow selection selection of different drives available on your PC.
DirListBox - To display directories
TextBox - To display selected files
FileListBox- To display files that are available
Relevant codes must be written to coordinate all the above controls so that the application can work properly. The program should flow in the following logical way:
Step 1: User chooses the type of files he wants to play.
Step2:User selects the drive that might contains the relevant audio files.
Step 3:User looks into directories and subdirectories for the files specified in step1. The files should be displayed in the FileListBox.
Step 4: User selects the files from the FileListBox and clicks the Play button.
Step 5: User clicks on the Stop button to stop playing and Exit button to end the application.
The Interface
Lesson 23: Creating database applications in VB-Part I

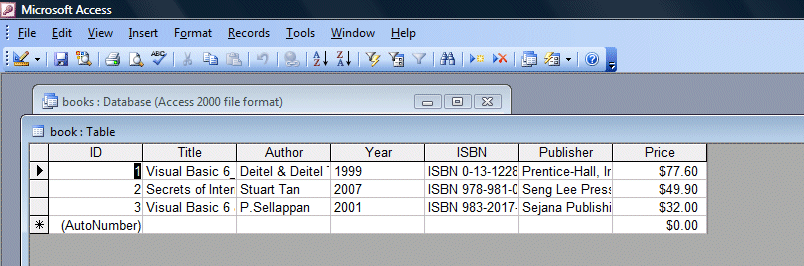

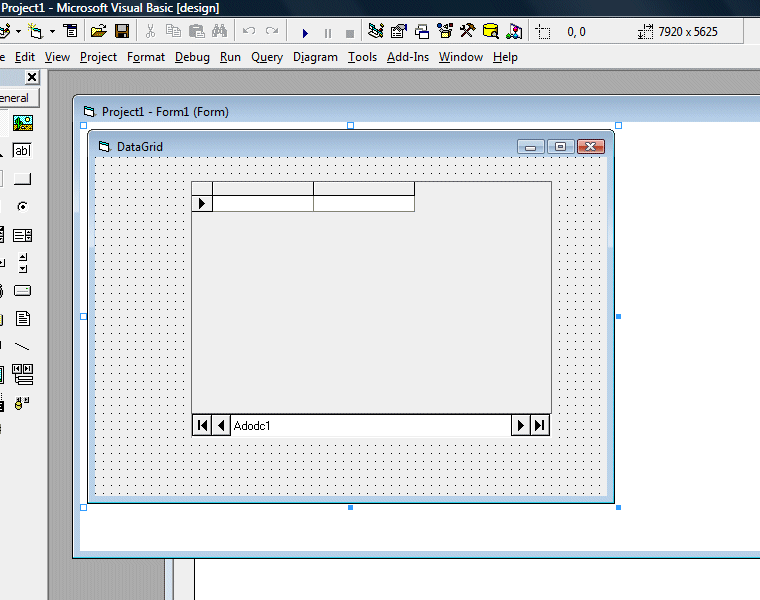

Visual basic allows us to manage databases created with different database programs such as MS Access, Dbase, Paradox and etc. In this lesson, we are not dealing with how to create database files but we will see how we can access database files in the VB environment. In the following example, we will create a simple database application which enable one to browse customers' names. To create this application, insert the data control into the new form. Place the data control somewhere at the bottom of the form. Name the data control as data_navigator. To be able to use the data control, we need to connect it to any database. We can create a database file using any database application but I suggest we use the database files that come with VB6. Let select NWIND.MDB as our database file.
¡¡
To connect the data control to this database, double-click the DatabaseName property in the properties window and select the above file, i.e NWIND.MDB. Next, double-click on the RecordSource property to select the customers table from the database. You can also change the caption of the data control to anything but I use "Click to browse Customers" here. After that, we will place a label and change its caption to Customer Name. Last but not least, insert another label and name it as cus_name and leave the label empty as customers' names will appear here when we click the arrows on the data control. We need to bind this label to the data control for the application to work. To do this, open the label's DataSource and select data_navigator that will appear automatically. One more thing that we need to do is to bind the label to the correct field so that data in this field will appear on this label. To do this, open the DataField property and select ContactName. Now, press F5 and run the program. You should be able to browse all the customers' names by clicking the arrows on the data control.
The Design Interface.
The Code
Private Sub Form_Load()
Left = (Screen.Width - Width) \ 2
Top = (Screen.Height - Height) \ 2
Combo1.Text = "*.wav"
Combo1.AddItem "*.wav"
Combo1.AddItem "*.mid"
Combo1.AddItem "*.avi;*.mpg"
Combo1.AddItem "All files"
End Sub
Private Sub Combo1_Change()
If ListIndex = 0 Then
File1.Pattern = ("*.wav")
ElseIf ListIndex = 1 Then
File1.Pattern = ("*.mid")
ElseIf ListIndex = 2 Then
File1.Pattern = ("*.avi;*.mpg")
Else
Fiel1.Pattern = ("*.*")
End If
End Sub
Private Sub Dir1_Change()
File1.Path = Dir1.Path
If Combo1.ListIndex = 0 Then
File1.Pattern = ("*.wav")
ElseIf Combo1.ListIndex = 1 Then
File1.Pattern = ("*.mid")
ElseIf Combo1.ListIndex = 2 Then
File1.Pattern = ("*.avi;*.mpg")
Else
File1.Pattern = ("*.*")
End If
End Sub
Private Sub Drive1_Change()
Dir1.Path = Drive1.Drive
End Sub
Private Sub File1_Click()
If Combo1.ListIndex = 0 Then
File1.Pattern = ("*.wav")
ElseIf Combo1.ListIndex = 1 Then
File1.Pattern = ("*.mid")
ElseIf Combo1.ListIndex = 2 Then
File1.Pattern = ("*.avi;*.mpg")
Else
File1.Pattern = ("*.*")
End If
If Right(File1.Path, 1) <> "\" Then
filenam = File1.Path + "\" + File1.FileName
Else
filenam = File1.Path + File1.FileName
End If
Text1.Text = filenam
End Sub
Private Sub play_Click()
MMPlayer.FileName = Text1.Text
MMPlayer.Command = "Open"
MMPlayer.Command = "Play"
MMPlayer.hWndDisplay = videoscreen.hWnd
End Sub
Private Sub stop_Click()
If MMPlayer.Mode = 524 Then Exit Sub
If MMPlayer.Mode <> 525 Then
MMPlayer.Wait = True
MMPlayer.Command = "Stop"
End If
MMPlayer.Wait = True
MMPlayer.Command = "Close"
End Sub
The Runtime Interface
You can also add other fields using exactly the same method. For example, you can add adress, City and telephone number to the database browser.
Lesson 24: Creating database applications in VB-Part II
In Lesson 23, you have learned how to create a simple database application using data control. In this lesson, you will work on the same application but use some slightly more advance commands. The data control support some methods that are useful in manipulating the database, for example, to move the pointer to a certain location. The following are some of the commands that you can use to move the pointer around:
data_navigator.RecordSet.MoveFirst ' Move to the first record
data_navigator.RecordSet.MoveLast ' Move to the last record
data_navigator.RecordSet.MoveNext ' Move to the next record
data_navigator.RecordSet.Previous ' Move to the first record
You can also add, save and delete records using the following commands:
data_navigator.RecordSet.AddNew ' Adds a new record
data_navigator.RecordSet.Update ' Updates and saves the new record
data_navigator.RecordSet.Delete ' Deletes a current record
*note: data_navigator is the name of data control
In the following example, you shall insert four commands and label them as First Record, Next Record, Previous Record and Last Record . They will be used to navigator around the database without using the data control. You still need to retain the same data control (from example in lesson 19) but set the property Visible to no so that users will not see the data control but use the button to browse through the database instead. Now, double-click on the command button and key in the codes according to the labels.
Private Sub Command2_Click()
dtaBooks.Recordset.MoveFirst
End Sub
Private Sub Command1_Click()
dtaBooks.Recordset.MoveNext
End Sub
Private Sub Command3_Click()
dtaBooks.Recordset.MovePrevious
End Sub
Private Sub Command4_Click()
dtaBooks.Recordset.MoveLast
End Sub
Run the application and you shall obtain the interface below and you will be able to browse the database using the four command buttons.
Lesson 25: Creating VB database applications using ADO control
In Lesson 22 and Lesson 23, we have learned how to build VB database applications using data control. However, data control is not a very flexible tool as it could only work with limited kinds of data and must work strictly in the Visual Basic environment. To overcome these limitations, we can use a much more powerful data control in Visual Basic, known as ADO control. ADO stands for ActiveX data objects. As ADO is ActiveX-based, it can work in different platforms (different computer systems) and different programming languages. Besides, it can access many different kinds of data such as data displayed in the Internet browsers, email text and even graphics other than the usual relational and non relational database information.
To be able to use ADO data control, you need to insert it into the toolbox. To do this, simply press Ctrl+T to open the components dialog box and select Microsoft ActiveX Data Control 6. After this, you can proceed to build your ADO-based VB database applications.
¡¡
The following example will illustrate how to build a relatively powerful database application using ADO data control. First of all, name the new form as frmBookTitle and change its caption to Book Titles- ADO Application. Secondly, insert the ADO data control and name it as adoBooks and change its caption to book. Next, insert the necessary labels, text boxes and command buttons. The runtime interface of this program is shown in the diagram below, it allows adding and deletion as well as updating and browsing of data.
The properties of all the controls are listed as follow:
Form Name frmBookTitle
Form Caption Book Titles -ADOApplication
ADO Name adoBooks
Label1 Name lblApp
Label1 Caption Book Titles
Label 2 Name lblTitle
Label2 Caption Title :
Label3 Name lblYear
Label3 Caption Year Published:
Label4 Name lblISBN
Label4 Caption ISBN:
Labe5 Name lblPubID
Label5 Caption Publisher's ID:
Label6 Name lblSubject
Label6 Caption Subject :
TextBox1 Name txtitle
TextBox1 DataField Title
TextBox1 DataSource adoBooks
TextBox2 Name txtPub
TextBox2 DataField Year Published
TextBox2 DataSource adoBooks
TextBox3 Name txtISBN
TextBox3 DataField ISBN
TextBox3 DataSource adoBooks
TextBox4 Name txtPubID
TextBox4 DataField PubID
TextBox4 DataSource adoBooks
TextBox5 Name txtSubject
TextBox5 DataField Subject
TextBox5 DataSource adoBooks
Command Button1 Name cmdSave
Command Button1 Caption &Save
Command Button2 Name cmdAdd
Command Button2 Caption &Add
Command Button3 Name cmdDelete
Command Button3 Caption &Delete
Command Button4 Name cmdCancel
Command Button4 Caption &Cancel
Command Button5 Name cmdPrev
Command Button5 Caption &<
Command Button6 Name cmdNext
Command Button6 Caption &>
Command Button7 Name cmdExit
Command Button7 Caption E&xit
¡¡
To be able to access and manage a database, you need to connect the ADO data control to a database file. We are going to use BIBLIO.MDB that comes with VB6. To connect ADO to this database file , follow the steps below:
a) Click on the ADO control on the form and open up the properties window.
b) Click on the ConnectionString property, the following dialog box will appear.
when the dialog box appear, select the Use Connection String's Option. Next, click build and at the Data Link dialog box, double-Click the option labeled Microsoft Jet 3.51 OLE DB provider.
After that, click the Next button to select the file BIBLO.MDB. You can click on Text Connection to ensure proper connection of the database file. Click OK to finish the connection.
Finally, click on the RecordSource property and set the command type to adCmd Table and Table name to Titles. Now you are ready to use the database file.
Now, you need to write code for all the command buttons. After which, you can make the ADO control invisible.
For the Save button, the program codes are as follow:
Private Sub cmdSave_Click()
adoBooks.Recordset.Fields("Title") = txtTitle.Text
adoBooks.Recordset.Fields("Year Published") = txtPub.Text
adoBooks.Recordset.Fields("ISBN") = txtISBN.Text
adoBooks.Recordset.Fields("PubID") = txtPubID.Text
adoBooks.Recordset.Fields("Subject") = txtSubject.Text
adoBooks.Recordset.Update
End Sub
For the Add button, the program codes are as follow:
Private Sub cmdAdd_Click()
adoBooks.Recordset.AddNew
End Sub
For the Delete button, the program codes are as follow:
Private Sub cmdDelete_Click()
Confirm = MsgBox("Are you sure you want to delete this record?", vbYesNo, "Deletion Confirmation")
If Confirm = vbYes Then
adoBooks.Recordset.Delete
MsgBox "Record Deleted!", , "Message"
Else
MsgBox "Record Not Deleted!", , "Message"
End If
End Sub
¡¡
For the Cancel button, the program codes are as follow:
Private Sub cmdCancel_Click()
txtTitle.Text = ""
txtPub.Text = ""
txtPubID.Text = ""
txtISBN.Text = ""
txtSubject.Text = ""
End Sub
For the Previous (<) button, the program codes are
Private Sub cmdPrev_Click()
If Not adoBooks.Recordset.BOF Then
adoBooks.Recordset.MovePrevious
If adoBooks.Recordset.BOF Then
adoBooks.Recordset.MoveNext
End If
End If
End Sub
For the Next(>) button, the program codes are
Private Sub cmdNext_Click()
If Not adoBooks.Recordset.EOF Then
adoBooks.Recordset.MoveNext
If adoBooks.Recordset.EOF Then
adoBooks.Recordset.MovePrevious
End If
End If
End Sub
Lesson 26: Using Microsoft DataGrid Control 6.0
In the previous chapter, we use textboxes to display data by connecting them to a database via Microsoft ADO data Control 6.0. The textbox is not the only control that can display data from a database, many other controls in Visual Basic can display data. One of the them is the DataGrid control. DataGrid control can be used to display the entire table of a recordset of a database. It allows users to view and edit the data.
DataGrid control is the not the default item in the Visual Basic control toolbox, you have add it from the VB6 components. To add the DataGrid control, click on the project in the menu bar and select components where a dialog box that displays all the available VB6 components. Select Microsoft DataGrid Control 6.0 by clicking the checkbox beside this item. Before you exit the dialog box, you also need to select the Microsoft ADO data control so that you are able to access the database. Lastly, click on the OK button to exit the dialog box. Now you should be able to see that the DataGrid control and the ADO data control are added to the toolbox. The next step is to drag the DataGrid control and the ADO data control into the form.
The components dialog box is shown below:
Before you proceed , you need to create a database file using Microsoft Access. Here I created a file to store my the information of my books and I name the table book. After you have created the table, enter a few records such as mine. The table is shown below:
Now you need to connect the database to the ADO data control. To do that, right click on the ADO data control and select the ADODC properties, the following dialog box will appear.
Next click on the Build button and the Data Link Properties dialog box will appear (as shown below). In this dialog box, select the database file you have created, in my case, the file name is books.mdb. Press test connection to see whether the connection is successful. If the connection is successful, click OK to return to the ADODC property pages dialog box. At the ADODC property pages dialog box, click on the Recordsource tab and select 2-adCmdTable under command type and select book as the table name, then click OK
Finally you need to display the data in the DataGrid control. To accomplish this, go to the properties window and set the DataSource property of the DataGrid to Adodc1. You can also permit the user to add and edit your records by setting the AllowUpdate property to True. If you set this property to false, the user cannot edit the records. Now run the program and the output window is shown below:
Lesson 27: Using SQL queries in Visual Basic 6
In the previous chapter, we have learned to use the DataGrid Control to display data from a database in Visual Basic 6 environment. However, it does not allow users to search for and select the information they want to see. In order to search for a certain information, we need to use SQL query. SQL stands for Structures Query Language. Using SQL keywords, we are able to select specific information to be displayed based on certain criteria. The most basic SQL keyword is SELECT, it is used together with the keyword FROM to select information from one or more tables from a database. The syntax is:
SELECT fieldname1,fieldname2,.....,fieldnameN FROM TableName
fieldname1, fieldname2,......fieldnameN are headings of the columns from a table of a database. You can select any number of fieldname in the query. If you wish to select all the information, you can use the following syntax:
SELECT * FROM TableName
In order to illustrate the usage of SQL queries, lets create a new database in Microsoft Access with the following filenames ID, Title, Author, Year, ISBN, Publisher, Price and save the table as book and the database as books.mdb in a designated folder.
Next, we will start Visual Basic and insert an ADO control, a DataGrid and three command buttons. Name the three command buttons as cmdAuthor, cmdTitle and cmdAll. Change their captions to Display Author ,Display Book Title and Display All respectively. You can also change the caption of the form to My Books. The design interface is shown below:
Now you need to connect the database to the ADO data control. Please refer to lesson 25 for the details. However, you need to make one change. At the ADODC property pages dialog box, click on the Recordsource tab and select 1-adCmdText under command type and under Command Text(SQL) key in SELECT * FROM book.
Next, click on the command buttton cmdAuthor and key in the following statements:
Private Sub cmdAuthor_Click()
Adodc1.RecordSource = "SELECT Author FROM book"
Adodc1.Refresh
Adodc1.Caption = Adodc1.RecordSource
End Sub
and for the command button cmdTitle, key in
Private Sub cmdTitle_Click()
Adodc1.RecordSource = "SELECT Title FROM book"
Adodc1.Refresh
Adodc1.Caption = Adodc1.RecordSource
End Sub
Finally for the command button cmdAll, key in
Private Sub cmdAll_Click()
Adodc1.RecordSource = "SELECT * FROM book"
Adodc1.Refresh
Adodc1.Caption = Adodc1.RecordSource
End Sub
Now, run the program and when you click on the Display Author button, only the names of authors will be displayed, as shown below:
Lastly, click on the Display All button and all the information will be displayed.
and when you click on the Display Book Title button, ony the book titles will be displayed, as show below:
Lesson 28: More SQL Keywords
In the previous chapter, we have learned to use the basic SQL keywords SELECT and FROM to manipulate database in Visual Basic 6 environment. In this lesson, you will learn to use more SQL keywords. One of the more important SQL keywords is WHERE. This keyword allow the user to search for data that fulfill certain criteria. The Syntax is as follows:
SELECT fieldname1,fieldname2,.....,fieldnameN FROM TableName WHERE Criteria
The criteria can be specified using operators such as =, >,<, <=, >=, <> and Like.
Using the database books.mdb created in the previous chapter, we will show you a few examples. First of all, start a new project and insert a DataGrid control and an ADO control into the form. . At the ADODC property pages dialog box, click on the Recordsource tab and select 1-adCmdText under command type and under Command Text(SQL) key in SELECT * FROM book. Next, insert one textbox and put it on top of the DataGrid control, this will be the place where the user can enter SQL query text. Insert one command button and change the caption to Query. The design interface is shown below:
Example 21d1: Query based on Author
Run the program and key in the following SQL query statement
SELECT Title, Author FROM book WHERE Author='Liew Voon Kiong'
Where you click on the query button, the DataGrid will display the author name Liew Voon Kiong. as shown below:
Example 21d2:Query based on year
Run the program and key in the following SQL query statement:
SELECT * FROM book WHERE Year>2005
Where you click on the query button, the DataGrid will display all the books that were published after the year 2005.
You can also try following queries:
* SELECT * FROM book WHERE Price<=80
* SELECT * FROM book WHERE Year=2008
* SELECT * FROM book WHERE Author<>'Liew Voon Kiong'
You may also search for data that contain certain characters by pattern matching. It involves using the Like operator and the % symbol. For example, if you want to search for a author name that begins with alphabet J, you can use the following query statement
SELECT * FROM book WHERE Author Like 'J%'
Where you click on the query command button, the records where authors' name start with the alphabet J will be displayed, as shown below:
Next, if you wish to rank order the data, either in ascending or descending order, you can use the ORDER By , ASC (for ascending) and DESC(Descending) SQL keywords.
The general formats are
SELECT fieldname1, fieldname2.....FROM table ORDER BY fieldname ASC
SELECT fieldname1, fieldname2.....FROM table ORDER BY fieldname DESC
Example 21d3:
The following query statement will rank the records according to Author in ascending order.
SELECT Title, Author FROM book ORDER BY Author ASC
Example 21d4
The following query statement will rank the records according to price in descending order.
SELECT Title, Price FROM book ORDER BY Price DESC
Lesson 29: Creating Advanced VB database application using ADO control
In previous lessons, you have learned how to design database applications using data control and ADO control. However, those applications are very simple and plain . In this lesson, you will learn how to create a more advanced database application using ADO control. The application you are going to create is known as an electronic library. This electronic library will be able to accept the user registration as well as handling login command that require the user's password, thus enhancing the security aspect of the database. Basically, the application will constitute a welcome menu, a registration menu, a Login menu and the main database menu. The sequence of the menus are illustrated as follow:
2.1 The Welcome Menu
First of all, you need to design the Welcome menu. You can follow the example as follow:
In this form, you need to insert three command buttons and set their properties as follow:
Form name main_menu
command button 1 Name cmdRegister
command button 1 Caption Register
command button 2 Name cmdLogin
command button 2 Caption Login
command button 3 Name cmdCancel
command button 3 Caption Cancel
The code is as follows:
Private Sub cmdCancel_Click()
End
End Sub
Private Sub cmdLogin_Click()
main_menu.Hide
Login_form.Show
End Sub
Private Sub cmdRegister_Click()
main_menu.Hide
Register.Show
End Sub
29.2 The Registration Form
If a new user click the Register button, the registration form will appear. An example is illustrated as follow:
This registration forms consist of two text boxes , three command buttons and an ADO control. Their properties are set as follow:
Form name Register
textbox 1 name txtName
textbox 2 name txtpassword
textbox 2 PasswordChar *
command button 1 name cmdConfirm
command button 1 Caption Confirm
command button 2 name cmdClear
command button 2 Caption Clear
command button 3 name cmdCancel
command button 3 Caption Cancel
ADO control name UserInfo
note that the PasswordChar of textbox 2 is set as * which means users will not be able to see the actual characters they enter, they will only see the * symbol.
The codes are as follow:
Private Sub cancel_Click( )
End
End Sub
Private Sub cmdClear_Click( )
txtName.Text = ""
txtpassword.Text = ""
End Sub
Private Sub cmdConfirm_Click()
UserInfo.Recordset.Fields("username") = txtName.Text
UserInfo.Recordset.Fields("password") = txtpassword.Text
UserInfo.Recordset.Update
Register.Hide
Login_form.Show
End Sub
Private Sub Form_Load()
UserInfo.Recordset.AddNew
End Sub
29.3 The Login Menu
The Login menu is illustrated as follow:
There are two text boxes and a command button, their properties are set as follow:
Textbox 1 name txtName
Textbox 2 name txtpassword
Command button 1 name cmdLogin
Command button 1 Caption Login
Form name Login_form
The codes are as follow:
Private Sub cmdLogin_Click()
Dim usrname As String
Dim psword As String
Dim usernam As String
Dim pssword As String
Dim Msg As String
Register.UserInfo.Refresh
usrname = txtName.Text
psword = txtpassword.Text
Do Until Register.UserInfo.Recordset.EOF
If Register.UserInfo.Recordset.Fields("username").Value = usrname And Register.UserInfo.Recordset.Fields("password").Value = psword Then
Login_form.Hide
frmLibrary.Show
Exit Sub
Else
Register.UserInfo.Recordset.MoveNext
End If
Loop
Msg = MsgBox("Invalid password, try again!", vbOKCancel)
If (Msg = 1) Then
Login_form.Show
txtName.Text = ""
txtpassword = ""
Else
End
End If
End Sub
29.4 The Main Database Manager
The main database manager is illustrated as follow:
The properties of all controls are listed in the table below:
Form name frmLibrary
ADO control name adoLibrary
ADO visible False
TextBox 1 name txtTitleA
TextBox 2 name txtAuthor
TextBox 3name txtPublisher
TextBox 4 name txtYear
TextBox 5 name txtCategory
Command button 1 name cmdSave
Command button 1 caption &Save
Command button 2 name cmdNew
Command button 2 caption &New
Command button 3 name cmdDelete
Command button 3 caption &Delete
Command button 4 name cmdCancel
Command button 4 caption &Cancel
Command button 5 name cmdNext
Command button 5 caption N&ext
Command button 6 name cmdPrevious
Command button 6 caption &Previous
Command button 7 name cmdExit
Command button 7 caption E&xit
The codes are as follow:
Private Sub cmdCancel_Click()
txtTitle.Text = ""
txtAuthor.Text = ""
txtPublisher.Text = ""
txtYear.Text = ""
txtCategory.Text = ""
End Sub
Private Sub cmdDelete_Click()
Confirm = MsgBox("Are you sure you want to delete this record?", vbYesNo, "Deletion Confirmation")
If Confirm = vbYes Then
adoLibrary.Recordset.Delete
MsgBox "Record Deleted!", , "Message"
Else
MsgBox "Record Not Deleted!", , "Message"
End If
End Sub
Private Sub cmdExit_Click()
End
End Sub
Private Sub cmdNew_Click()
adoLibrary.Recordset.AddNew
End Sub
Private Sub cmdNext_Click()
If Not adoLibrary.Recordset.EOF Then
adoLibrary.Recordset.MoveNext
If adoLibrary.Recordset.EOF Then
adoLibrary.Recordset.MovePrevious
End If
End If
End Sub
Private Sub cmdPrevious_Click()
If Not adoLibrary.Recordset.BOF Then
adoLibrary.Recordset.MovePrevious
If adoLibrary.Recordset.BOF Then
adoLibrary.Recordset.MoveNext
End If
End If
End Sub
Private Sub cmdSave_Click()
adoLibrary.Recordset.Fields("Title").Value = txtTitle.Text
adoLibrary.Recordset.Fields("Author").Value = txtAuthor.Text
adoLibrary.Recordset.Update
End Sub
Lesson 30 : Animation-Part I
Animation is always an interesting and exciting part of programming. Although visual basic is not designed to handle advance animations, you can still create some interesting animated effects if you put in some hard thinking. There are many ways to create animated effects in VB6, but for a start we will focus on some easy methods.
The simplest way to create animation is to set the VISIBLE property of a group of images or pictures or texts and labels to true or false by triggering a set of events such as clicking a button. Let's examine the following example:
This is a program that create the illusion of moving the jet plane in four directions, North, South ,East, West. In order to do this, insert five images of the same picture into the form. Set the visible property of the image in the center to be true while the rest set to false. On start-up, a user will only be able to see the image in the center. Next, insert four command buttons into the form and change the labels to Move North, Move East, Move West and Move South respectively. Double click on the move north button and key in the following procedure:
Sub Command1_click( )
Image1.Visible = False
Image3.Visible = True
Image2.Visible = False
Image4.Visible = False
Image5.Visible = False
End Sub
By clicking on the move north button, only image 3 is displayed. This will give an illusion that the jet plane has moved north. Key in similar procedures by double clicking other command buttons. You can also insert an addition command button and label it as Reset and key in the following codes:
Image1.Visible = True
Image3.Visible = False
Image2.Visible = False
Image4.Visible = False
Image5.Visible = False
Clicking on the reset button will make the image in the center visible again while other images become invisible, this will give the false impression that the jet plane has move back to the original position.
You can also issue the commands using a textbox, this idea actually came from my son Liew Xun (10 years old). His program is shown below:
Private Sub Command1_Click()
If Text1.Text = "n" Then
Image1.Visible = False
Image3.Visible = True
Image2.Visible = False
Image4.Visible = False
Image5.Visible = False
ElseIf Text1.Text = "e" Then
Image1.Visible = False
Image4.Visible = True
Image2.Visible = False
Image3.Visible = False
Image5.Visible = False
ElseIf Text1.Text = "w" Then
Image1.Visible = False
Image3.Visible = False
Image2.Visible = False
Image4.Visible = False
Image5.Visible = True
ElseIf Text1.Text = "s" Then
Image1.Visible = False
Image3.Visible = False
Image2.Visible = True
Image4.Visible = False
Image5.Visible = False
End If
End Sub
Another simple way to simulate animation in VB6 is by using the Left and Top properties of an object. Image.Left give the distance of the image in twips from the left border of the screen, and Image.Top give the distance of the image in twips from the top border of the screen, where 1 twip is equivalent to 1/1440 inch. Using a statement such as Image.Left-100 will move the image 100 twips to the left, Image.Left+100 will move the image 100 twip away from the left(or 100 twips to the right), Image.Top-100 will move the image 100 twips to the top and Image.Top+100 will move the image 100 twips away from the top border (or 100 twips down).Below is a program that can move an object up, down. left, and right every time you click on a relevant command button.
The Code
Private Sub Command1_Click()
Image1.Top = Image1.Top + 100
End Sub
Private Sub Command2_Click()
Image1.Top = Image1.Top - 100
End Sub
Private Sub Command3_Click()
Image1.Left = Image1.Left + 100
End Sub
Private Sub Command4_Click()
Image1.Left = Image1.Left - 100
End Sub
The fourth example let user magnify and diminish an object by changing the height and width properties of an object. It is quite similar to the previous example. The statements Image1.Height = Image1.Height + 100 and Image1.Width = Image1.Width + 100 will increase the height and the width of an object by 100 twips each time a user click on the relevant command button. On the other hand, The statements Image1.Height = Image1.Height - 100 and Image1.Width = Image1.Width -100 will decrease the height and the width of an object by 100 twips each time a user click on the relevant command button
The Code
Private Sub Command1_Click()
Image1.Height = Image1.Height + 100
Image1.Width = Image1.Width + 100
End Sub
Private Sub Command2_Click()
Image1.Height = Image1.Height - 100
Image1.Width = Image1.Width - 100
End Sub
You can try to combine both programs above and make an object move and increases or decreases in size each time a user click a command button.
Lesson 31: Animation - Part II
31.1 Animation using a DragDrop Procedure
Drag and drop is a common windows application where you can drag and drop an object such as a file into a folder or into a recycle bin. This capability can be easily programmed in visual basic. In the following example, I am creating a simulation of dragging the objects into a recycle bin, then drop a fire and burn them away.
In this program, I put 6 images on the form, one of them is a recycle bin, another is a burning recycle bin , one more is the fire, and three more images. In addition, set the property dragmode of all the images( including the fire) that are to be dragged to 1(Automatic) so that dragging is enabled, and set the visible property of burning recycle bin to false at start-up. Besides, label the tag of fire as fire in its properties windows. If you want to have better dragging effects, you need to load an appropriate icon under the dragIcon properties for those images to be dragged, preferably the icon should be the same as the image so that when you drag the image, it is like you are dragging the image along.
The essential event procedure in this program is as follows:
Private Sub Image4_DragDrop(Source As Control, X As Single, Y As Single)
Source.Visible = False
If Source.Tag = "Fire" Then
Image4.Picture = Image5.Picture
End If
End Sub
Source refer to the image to be dragged. Using the code Source.Visible=False means it will disappear after being dragged into the recycle bin(Image4).If the source is Fire, then the recycle bin will changed into a burning recycle bin , which is accomplished by using the code Image4.Picture = Image5.Picture, where Image 5 is the burning recycle bin.
Lesson 33: Internet and Web Applications Part1-The web Browser
In order to create the web browser, you have to press Ctrl+T to open up the components window and select Microsoft Internet Control. After you have selected the control, you will see the control appear in the toolbox as a small globe. To insert the Microsoft Internet Control into the form, just drag the globe into the form and a white rectangle will appears in the form. You can resize this control as you wish. This control is given the default name WebBrowser1.
To design the interface, you need to insert one combo box which will be used to display the URLs. In addition, you need to insert a few images which will function as command buttons for the user to navigate the Internet; they are the Go command, the Back command, the Forward command, the Refresh command and the Home command. You can actually put in the command buttons instead of the images, but using images will definitely improve the look of the browser.
The procedures for all the commands are relatively easy to write. There are many methods, events, and properties associated with the web browser but you need to know just a few of them to come up with a functional Internet browser
The method navigate is to go the website specified by its Uniform Resource Locator(URL). The syntax is WebBrowser1.Navigate (“URL”). In this program, I want to load the www.vbtutor.net web page at start-up, so I type in its URL.
Private Sub Form_Load()
WebBrowser1.Navigate ("http://www.vbtutor.net")
End Sub
In order to show the URL in the combo box and also to display the page title at the form caption after the page is completely downloaded, I use the following statements:
Private Sub
WebBrowser1_DocumentComplete (ByVal pDisp As Object, URL As Variant)
Combo1.Text = URL
Form1.Caption = WebBrowser1.LocationName
Combo1.AddItem URL
End Sub
The following procedure will tell the user to wait while the page is loading.
Private Sub
WebBrowser1_DownloadBegin ()
Combo1.Text = "Page loading, please wait"
End Sub
Lesson 34: Internet and Web Applications Part 2-The FTP Program
FTP stands for File Transfer Protocol .The File Transfer Protocol is a system for transferring files between two computers connected by the Internet .One of the computers is known as the server and the other one is the client. The FTP program is very useful for website management. The webmaster can update the web pages by uploading the local files to the web server easily , at a much faster speed than the web browser. For normal PC users, the FTP program can also be used to download files from many FTP sites that offer a lot of useful stuffs such as free software, free games, product information, applications, tools, utilities, drivers, fixes and many more things.
The FTP program usually comprises an interface that shows the directories of the local computer and the remote server. Files can be transferred just by clicking the relevant arrows. To log into the FTP site, we have to key in the user name and the password; however, for public domains, we just need to type the word anonymous as the user name and you can leave out the password. The FTP host name takes the form ftp.servername.com, for example, the Microsoft FTP site’s host name is ftp.microsoft.com .If you need to use a FTP program, you can purchase one or you can download a couple of the programs that are available free of charge from the Internet. However, you can also create your very own FTP program with Visual Basic. Visual Basic allows you to build a fully functionally FTP program which may be just as good as the commercial FTP programs. The engine behind it is the Microsoft Internet Transfer Control 6.0 in which you need to insert it into your form before you can create the FTP program. The name of the Microsoft Internet Transfer Control 6.0.is Inet and if you only put in one control, its name will be Inet1.
Inet1 comprises three important properties namely Inet1.URL that is used to identify the FTP hostname, inet1.UserName that is used to accept the username and the Inet1.Password that is used to accept the user’s passwords. The statements for the program to read the hostname of the server, the username and the password entered into Textbox1, Textbox2 and Textbox3 by the user are shown below:
Inet1.URL=Text1.Text
Inet1.UserName=Text2.Text
Inet1.Passoword=Text3.Text
After the user entered the above information, the program will attempt to connect to the server using the following commands, where Execute is the method and DIR is the FTP command that will read the list of files from the specified directory of the remote computer and you need to use the getChunk method to actually retrieve the directory’s information.
Inet1.Execute, "DIR
After connecting to the server, you can choose the file from the remote computer to download by using the statement below:
Inet1.Execute, , "get" & remotefile & localfile
where remotefile is the file of the remote site and localfile is the file of the local system. However, very often you need to provide the full path of the local file, which you can do that by modifying the above syntax to the following syntax:
Inet1.Execute , , "get" & remotefile & localpath & remotefile
The above statements will ensure that the remote file will be downloaded to the location specified by the localpath and the file downloaded will assume the same name as the remote file. For example, if the remote file is readme.txt and the localpath is C:\temp , so the downloaded file will be saved in C:\temp\readme.txt.
Constant
Value
Description
icHostResolvingHost
1
The control is looking up the IP address of the specified host computer.
icHostResolved
2
The control successfully found the IP address of the specified host computer.
icConnecting
3
The control is connecting to the host computer.
icConnected
4
The control successfully connected to the host computer.
icRequesting
5
The control is sending a request to the host computer.
icRequestSent
6
The control successfully sent the request.
icReceivingResponse
7
The control is receiving a response from the host computer.
icResponseReceived
8
The control successfully received a response from the host computer.
icDisconnecting
9
The control is disconnecting from the host computer.
icDisconnected
10
The control successfully disconnected from the host computer.
icError
11
An error occurred in communicating with the host computer.
icResponseCompleted
12
The request has been completed and all data has been received
Under the StateChanged event, you use the Select Case…End Select statements to notify the users regarding the various states of the connection. The procedure is shown below:
Private Sub Inet1_StateChanged(ByVal State As Integer)
Select Case State
Case icError
MsgBox Inet1.ResponseInfo, , "File failed to transfer"
Case icResolvingHost
Label6.Caption = "Resolving Host"
Case icHostResolved
Label6.Caption = "Host Resolved"
Case icConnecting
Label6.Caption = "Connecting Host"
Case icConnected
Label6.Caption = "Host connected"
Case icReceivingResponse
Label6.Caption = "Receiving Response"
Case icResponseReceived
Label6.Caption = "Got Response"
Case icResponseCompleted
Dim data1 As String
Dim data2 As String
MsgBox "Download Completed"
End Select
End Sub
The FTP program that I have created contains a form and a dialog box. The dialog box can be added by clicking on the Project item on the menu bar and then selecting the Add Form item on the drop-down list. You can either choose a normal dialog box or a login dialog box. The function of the dialog box is to accept the FTP address, the username and the password and then to connect to the server. After successful login, the dialog box will be hidden and the main form will be presented for the user to browse the remote directory and to choose certain files to download.
The interface of the login dialog is shown on the right.
The program for the login dialog is,
Option Explicit
Private Sub OKButton_Click()
Inet1.URL = Text1.Text
Inet1.UserName = Text2.Text
Inet1.Password = Text3.Text
Inet1.Execute , "DIR"
Form1.Show
Dialog.Hide
End Sub
Private Sub Inet1_StateChanged(ByVal State As Integer)
Select Case State
Case icError
MsgBox Inet1.ResponseInfo, , "File failed to transfer"
Case icResolvingHost
Label6.Caption = "Resolving Host"
Case icHostResolved
Label6.Caption = "Host Resolved"
Case icConnecting
Label6.Caption = "Connecting Host"
Case icConnected
Label6.Caption = "Host connected"
Case icReceivingResponse
Label6.Caption = "Receiving Response"
Case icResponseReceived
Label6.Caption = "Got Response"
Case icResponseCompleted
Dim data As String
Dim data1 As String
MsgBox "Transfer Completed"
Do
data1 = Inet1.GetChunk(1024, icString)
data = data & data1
Loop While Len(data1) <> 0
Form1.Text6.Text = data
End Select
End Sub
Private Sub CancelButton_Click()
Text1.Text = ""
Text2.Text = ""
Text3.Text = ""
End Sub
retrieve
The statement data1 = Inet1.GetChunk (1024, icString) is to use the getChunk method to grab information of the remote directory and then display the files of the directory in Textbox6.
After logging in, the main form will be presented as shown in Figure 30.3
Lesson 35: Errors Handling in Visual Basic
35.1 Introduction
Error handling is an essential procedure in Visual Basic programming because it can help make the program error-free. An error-free program can run smoothly and efficiently, and the user does not have to face all sorts of problems such as program crash or system hang.
Errors often occur due to incorrect input from the user. For example, the user might make the mistake of attempting to ask the computer to divide a number by zero which will definitely cause system error. Another example is the user might enter a text (string) to a box that is designed to handle only numeric values such as the weight of a person, the computer will not be able to perform arithmetic calculation for text therefore will create an error. These errors are known as synchronous errors.
Therefore a good programmer should be more alert to the parts of program that could trigger errors and should write errors handling code to help the user in managing the errors. Writing errors handling code should be considered a good practice for Visual Basic programmers, so do try to finish a program fast by omitting the errors handling code. However, there should not be too many errors handling code in the program as it create problems for the programmer to maintain and troubleshoot the program later.
35.2 Writing the Errors Handling Code
We shall now learn how to write errors handling code in Visual Basic. The syntax for errors handling is
On Error GoTo program_label
where program_label is the section of code that is designed by the programmer to handle the error committed by the user. Once an error is detected, the program will jump to the program_label section for error handling.
Example 35.1: Division by Zero
Private Sub CmdCalculate_Click()
Dim firstNum, secondNum As Double
firstNum = Txt_FirstNumber.Text
secondNum = Txt_SecondNumber.Text
On Error GoTo error_handler
Lbl_Answer.Caption = firstNum / secondNum
Exit Sub 'To prevent error handling even the inputs are valid
error_handler:
Lbl_Answer.Caption = "Error"
Lbl_ErrorMsg.Visible = True
Lbl_ErrorMsg.Caption = " You attempt to divide a number by zero!Try again!"
End Sub
Private Sub Txt_FirstNumber_GotFocus()
Lbl_ErrorMsg.Visible = False
End Sub
Private Sub Txt_SecondNumber_GotFocus()
Lbl_ErrorMsg.Visible = False
End Sub
The Output Window
Explanation:
In this example, you design the interface as above. Name the first textbox as Txt_FirstNumber and the second textbox as Txt_SecondNumber. Insert one command button as label it as Calculate. Insert one label and name it as Lbl_Answer to display the answers. If the user enter 0 in the second textbox as shown above, the program will jump to the label error_handler, and the procedure that is executed. It will show an error in the Txt_Answer label and an error message in the Lbl_ErrorMsg label.
Notice that Exit sub after the division. It is important because it can prevent the program to execute the error_handler code even though the user does not enter zero in the second textbox.
Lastly, after the error message appeared, the user will click on the textboxes again. When this occur, the error message will disappea both from the answer label and error message label. This is achieved by using he event procedure GotFocu, as shown in the code.
Example 35.2: Nested Error Handling Procedure
By referring to Example 28.1, we need to consider other errors probably will be made by the user, such as entering non-numeric inputs like letters. Therefore, we need to write error handling code for this error too. It should be put in the first place as soon as the user input something in the textboxes. And the error handler label error_handler1 for this errror should be put after the error_handler2 label. This means the second error handling procedure is nested within the first error handling procedure. Notice that you have to put an Exit Sub for the second error handling procedure to prevent to execute the first error handling procedure again. The code is as follow:
Private Sub CmdCalculate_Click()
Dim firstNum, secondNum As Double
On Error GoTo error_handler1
firstNum = Txt_FirstNumber.Text
secondNum = Txt_SecondNumber.Text
On Error GoTo error_handler2
Lbl_Answer.Caption = firstNum / secondNum
Exit Sub 'To prevent errror handling even the inputs are valid
error_handler2:
Lbl_Answer.Caption = "Error"
Lbl_ErrorMsg.Visible = True
Lbl_ErrorMsg.Caption = " You attempt to divide a number by zero!Try again!"
Exit Sub
error_handler1:
Lbl_Answer.Caption = "Error"
Lbl_ErrorMsg.Visible = True
Lbl_ErrorMsg.Caption = " You are not entering a number! Try again!"
End Sub
Private Sub Txt_FirstNumber_GotFocus()
Lbl_ErrorMsg.Visible = False
End Sub
Private Sub Txt_SecondNumber_GotFocus()
Lbl_ErrorMsg.Visible = False
End Sub
Lesson 36: Compiling and Distributing Your Programs
36.1 Compiling your Visual Basic Program
Once your have completed a VB program, you can compile the program to run as a standalone windows application, without having to launch the Visual Basic IDE. However, before you compile your program, you have to debug your program to make sure it is errors free. Once the program is compiled into an EXE file (executable file), you can not debug it anymore. If you wish to do so, you have to correct the errors and recompile it.
To start compiling your program, click on the menu File and select Make Project1.exe, as show in Figure 36.1. When you click on Make Project1.exe , the Make Project dialog box will appear, as shown in Figure 36.2. In this dialog box, you can select the project you wish to compile. In this example, the project I chose to compile is reversi. The option button in this dialog box let you customize the program you are going to compile. For example, you can enter the title of the program , the program's version and your company name. Clicking on the compile tab will let you decide the kind of code you wish to compile. The default option is native code and it is the best option because it normally runs faster. It requires fewer files to run, particular the VB DLL files. Once you have done that, you can click the OK button to compile the program. Now you program can run as a standalone application. You can start your program without launching the Visual Basic IDE.
Figure 36.1
Figure 36.2
Figure 36.3
Figure 36.4
36.2 Distributing Your Programs
After successfully created a VB program, you might want to market your product, either online or offline. This means that you need to create a package that can be distributed to your potential customers. The package created can be distributed using CD ROM, diskette or the Internet. The package will allow the user to install the program to install in the computer with the standard setup routine.
To create the distributable package, you can use the Package and Development Wizard that came with Visual Basic 6. The main purpose of this wizard is to create a setup program that can be used to install the application. Off course, it also does many other jobs like compiling your application and compresses the files for easy distribution.
When you start the Package and Development Wizard, you will be presented with the following dialog box:
First of all, you need to select the project you want to package. Here I have selected the starwar.vbp project. Next, you need to select one of the three options. Here, I suggest you select the first option to let the wizard create the installation package for you to distribute it using CD ROM or the Internet.
Once you click the package option, you will see the following dialog box where you are asked to choose a packaging script:
After you click next, you will see the following dialog box where you will be asked to choose a packaging type. Normally we choose the Standard Setup Package.
The next dialog box that shows up will ask you where to store the package, as shown below:
The next dialog box will show you the files that will be included in the package.
When you click the Finish button, the package will be created and ready for distribution.
Lesson 37: Creating Menus for Your Applications
Menu bar is the standard feature of most windows applications. The main purpose of the menus is for easy navigation and control of an application. Some of the most common menu items are File, Edit, View, Tools, Help and more. Each item on the main menu bar also provide a list of options or in the form of a pull-down menu. When you create a Visual Basic 6 program, you need not include as many menu items as a full fledge Windows application such as Microsoft Words. What you need is to include those menu items that can improve the ease of using your program by the user, and not to confuse the user with unnecessary items. Adding menu bar is relatively easy to accomplish in Visual Basic. There are two ways to add menus to your application, one way is to use the Visual Basic's Application Wizard and the other way is to use the menu editor.
37.1 Adding Menu Bar Using Visual Basic's Application Wizard
The easiest way to add menu bar to your application is by using Visual Basic's Application Wizard. This wizard allows the user to insert fully customized standard windows menus into his or her application. To start using Visual Basic's Application Wizard, you click on the Application Wizard icon at the Visual Basic new project dialog box, as shown below:
When you click on the VB Application wizard, the introduction dialog box will appear, as shown in Figure 37.1. As you are not loading any default setting, just click on the Next button. After clicking the Next button, the interface type dialog box will be displayed, as shown in Figure 37.3. There are three choices of interface for your project, as we currently not creating a Multiple Document Interface (MDI), we choose Single Document Interface (SDI). You can also type the project name in the textbox below, here I am using MyFirstMenu. After clicking the Next button, you will be presented with a list of menus and submenus that you would like to add them to your application. Check to select a menu item and uncheck to unselect a menu item. Let say we choose all the menus and click next, then you will get an interface will File, Edit, View and Help menus. such as that shown in Figure 37.5
Figure 37.2
Figure 37.3
Figure 37.4
Figure 37.5
When you click on any menu item, a list of drop-down submenu items will be displayed. For example, if you click on the File menu, the list of submenu items such as New, Open, Save, Save As and more will be displayed, as shown in Figure 37.6
Figure 37.6
Clicking on any of the dropped down menu item will show the code associated with it, and this is where you can modify the code to suit your programming needs. For example, clicking on the item Open will reveal the following code:
Figure 37.7
Now, I will show you how to modify the code in order to open a graphic file and display it in an image box. For this program, you have to insert a Image box into the form. Next add the following lines so that the user can open graphic files of different formats.
.Filter = "Bitmaps(*.BMP)|*.BMP|Metafiles(*.WMF)|*.WMF|Jpeg Files(*.jpg)|*.jpg|GIF Files(*.gif)|*.gif|Icon Files(*.ico)|*.ico|All Files(*.*)|*.*".
Then, you need to load the image into the Image box with the following code:
Image1.Picture = LoadPicture(.FileName)
Also set the Stretch property of the Image box to true so that the image loaded can resize by itself. Please note that each menu item is a special control, so it has a name too. The name for the menu File in this example is mnuFileOpen.
The full code is as follows:
Private Sub mnuFileOpen_Click()
Dim sFile As String
With dlgCommonDialog
.DialogTitle = "Open"
.CancelError = False
'ToDo: set the flags and attributes of the common dialog control
.Filter = "Bitmaps(*.BMP)|*.BMP|Metafiles(*.WMF)|*.WMF|Jpeg Files(*.jpg)|*.jpg|GIF Files(*.gif)|*.gif|Icon Files(*.ico)|*.ico|All Files(*.*)|*.*"
.ShowOpen
Image1.Picture = LoadPicture(.FileName)
If Len(.FileName) = 0 Then
Exit Sub
End If
sFile = .FileName
End With
'ToDo: add code to process the opened file
End Sub
When you run the program and click on the File menu and then the submenu Open, the following Open dialog box will be displayed, where you can look for graphic files of various formats to load it into the image box.
Figure 37.8
For example, selecting the jpeg file will allow you to choose the images of jpeg format.
Figure 37.9
Clicking on the particular picture will load it into the image box, as shown below.
Adding Menu Bar Using Menu Editor
To start adding menu items to your application, open an existing project or start a new project, then click on Tools in the menu bar of the Visual Basic IDE and select Menu Editor. When you click on the Menu Editor, the Menu Editor dialog will appear. In the Menu Editor dialog , key in the first item File in the caption text box. You can use the ampersand ( & ) sign in front of F so that F will be underlined when it appears in the menu, and F will become the hot key to initiate the action under this item by pressing the Alt key and the letter F. After typing &File in the Caption text box, move to the name textbox to enter the name for this menu item, you can type in mnuFile here. Now, click the Next button and the menu item &File will move into the empty space below, as shown in the following diagram:
Figure 37.11
You can then add in other menu items on the menu bar by following the same procedure, as shown in the diagram below:
when you click Ok, the menu items will be shown on the menu bar of the form.]
Figure 37.13
Now, you may proceed to add the sub menus. In the Menu Editor, click on the Insert button between File and Exit and then click the right arrow key, and the dotted line will appear. This shows the second level of the menu, or the submenu. Now key in the caption and the name. Repeat the same procedure to add other submenu items. Here, we are adding New, Open, Save, Save As and Exit.
Figure 37.14
Now click the OK button and go back to your form. You can see the dropped down submenus when you click on the item File, as shown.
Figure 37.15
Finally, you can enter the code by clicking on any of the submenu items. You can enter code such as that shown in section 37.1
Lesson 38: Keyboard Handling
In previous lessons, we have only learned how to trigger events or control program flow by clicking the mouse. In this chapter, you will learn how to use the keyboard to trigger an event using the keyboard beside using the mouse. When the user press a key on the keyboard, it will trigger an event or a series of events. These events are called the keyboard events. In Visual Basic, the three basic event procedure to handle the key events are KeyPress, Keydown and KeyUp
38.1 ASCII
The key event occurs when the user presses any key that corresponds to a certain alphanumeric value or an action such as Enter, spacing, backspace or so on. Each of those values or actions are represented by a set of codes known as the ASCII . ASCII stands for American Standard Code for Information Interchange. ASCII stands for American Standard Code for Information Interchange. Computers can only understand numbers, so an ASCII code is the numerical representation of a character such as 'a' or '@' or an action of some sort. ASCII was developed a long time ago and now the non-printing characters are rarely used for their original purpose.In order to write code for the Key events , we need to know the ASCII and the corresponding values. Some of the commond ASCII values are shown in Table 38.1.
ASCII Chr ASCII Chr ASCII Chr
8 Backspace 61 = 98 b
13 Carriage 62 > 99 c
Return
or enter
key
32 Space 63 ? 100 d
33 ! 64 @ 101 e
34 " 65 A 102 f
35 # 66 B 103 g
36 $ 67 C 104 h
37 % 68 D 105 i
38 & 69 E 106 j
39 ' 70 F 107 k
40 ( 71 G 108 l
41 ) 72 H 109 m
42 * 73 I 110 n
43 + 74 J 111 o
44 , 75 K 112 p
45 - 76 L 113 q
46 . 77 M 114 r
47 / 78 N 115 s
48 0 79 O 116 t
49 1 80 P 117 u
50 2 81 Q 118 v
51 3 82 R 119 w
52 4 83 S 120 x
53 5 84 T 121 y
54 6 85 U 122 z
55 7 86 V 123 {
56 8 87 W 124 |
57 9 88 X 125 }
58 : 89 Y 126 ~
59 ; 90 Z 127 DEL
60 < 97 a
Table 38.1: ASCII Values
38.2 Common Key Events Constants.
In Visual Basic 6, it employs a set of constants that correspond to the ASCII values. We can use the constants instead of the ASCII. The following tablle shows the constants and the corresponding ASCII values.
Event Constant ASCII Chr Event Constant ASCII Chr
vbKey0 48 0 vbKeyR 82 R
vbKey1 49 1 vbKeyS 83 S
vbKey2 50 2 vbKeyT 84 T
vbKey3 51 3 vbKeyU 85 U
vbKey4 52 4 vbKeyV 86 V
vbKey5 53 5 vbKeyW 87 W
vbKey6 54 6 vbKeyX 88 X
vbKey7 55 7 vbKeyY 89 Y
vbKey8 56 8 vbKeyZ 90 Z
vbKey9 57 9 vbKeyDecimal 110 Decima point
vbKeyA 65 A vbkeyBack 8 Backspace key
vbKeyB 66 B vbKeyTab 9 Tab key
vbKeyC 67 C vbkeyReturn 13 Return key(Enter key)
vbKeyD 68 D vbKeyShift 16 Shift key
vbKeyE 69 E vbKeyControl 17 Ctrl key
vbKeyF 70 F vbKeyCapital 20 Caps Lock key
vbKeyG 71 G vbKeyEscape 27 Esc key
vbKeyH 72 H vbKeySpace 32 Space bar
vbKeyI 73 I vbKeyInsert 45 Insert key
vbKeyJ 74 J vbKeyDelete 46 Delete key
vbKeyK 75 K
vbKeyL 76 L
vbKeyM 77 M
vbKeyN 78 N
vbKeyO 79 O
vbKeyP 80 P
vbKeyQ 81 Q
38.3 Writing code for the key events
We can write code for the three key events i.e. keyPress, KeyDown and KeyUp.
Example 38.1
Private Sub Form_KeyPress(KeyAscii As Integer)
If KeyAscii = 13 Then ' 13 is the ASCII value for the Enter key
Print "You have pressed the Enter key"
Else
Print "You have pressed other key"
End If
End Sub
In this example, the program can detect the pressing of Enter key and the keys other than the Enter key.
Example 38.2
If you wish to detect and display the key pressed by the user, simply type the following code:
Private Sub Form_KeyPress(KeyAscii As Integer)
Print Chr(KeyAscii)
End Sub
The function Chr will convert the ASCII values to the corresponding characters as shown in the ASCII table.
Example 38.3
Private Sub Form_KeyPress(KeyAscii As Integer)
For i = 65 To 90
Print Chr(KeyAscii)
Next
End Sub
In this example, we use the For ...Next loop to display the alphabet A to Z by pressing any key on the keyboard.
Example 38.4
Private Sub Form_KeyPress(KeyAscii As Integer)
If KeyAscii = 13 Then
For i = 97 To 122
Print Chr(i)
Next
End If
End Sub
Lesson 39: Using the Printer-Part 1
39.1 Printing using the Printer object
In previous lessons, we have only written programs that send output to the screen and not the printer. In this lesson, we will learn how to send an output to the printer and get it printed. Sending output to the printer is a simple task in Visual Basic, it involves the use of the Printer object and the print method. The standard code of sending an output to the printer and get it printed out is as follows:
Private Sub Form_Load()
Printer.Print "Welcome to Visual Basic"
End Sub
However, the code above only send the output to the printer without actually printing it. It will only print the output when you terminate the application. It can a very inconvenience if you need to close the program every time you want to print the output. To solve this little problem, we need to add the newpage or EndDoc method. So, add one extra line to the above code as follows:
Private Sub Form_Load()
Printer.Print "Welcome to Visual Basic"
Printer.EndDoc
End Sub
Beside printing messages in string form, you can actually print out other varibales including numeric values. Below is an example:
Private Sub Command1_Click()
Dim x, y As String, z As Variant
x = InputBox("Enter the first Number")
y = InputBox("Enter the second Number")
z = Val(x) + Val(y)
Printer.Print "The answer is" & z
Printer.EndDoc
End Sub
If x=3 and y=4, the printing output is "The answer is 7'
You can also use loops to send output to the printer. In the follow example, I used the For......Next loop to print out the multiplication table.
Private Sub Command1_Click()
Dim i, j As Integer
For i = 2 To 9
For j = 2 To 9
Printer.Print i & "x" & j & "=" & i * j,
Next j
Printer.Print Chr(13)
Next i
Printer.EndDoc
End Sub
The command Printer.Print Chr(13) is equivalent to pressing the Enter and print the output on the next line. The output is as follows:
2x2=4 2x3=6 2x4=8 2x5=10 2x6=12 2x7=14 2x8=16 2x9=18
3x2=6 3x3=9 3x4=12 3x5=15 3x6=18 3x7=21 3x8=24 3x9=27
4x2=8 4x3=12 4x4=16 4x5=20 4x6=24 4x7=28 4x8=32 4x9=36
5x2=10 5x3=15 5x4=20 5x5=25 5x6=30 5x7=35 5x8=40 5x9=45
6x2=12 6x3=18 6x4=24 6x5=30 6x6=36 6x7=42 6x8=48 6x9=54
7x2=14 7x3=21 7x4=28 7x5=35 7x6=42 7x7=49 7x8=56 7x9=63
8x2=16 8x3=24 8x4=32 8x5=40 8x6=48 8x7=56 8x8=64 8x9=72
9x2=18 9x3=27 9x4=36 9x5=45 9x6=54 9x7=63 9x8=72 9x9=81
Now you might want to know whether it is possible to print the content of text file created in Visual Basic. The answer is a big "YES". Let me use Example 17.3.2 of Lesson 17. We shall add a command button to the form and rename it as cmdPrint and change the label to Print, and then double click the button to insert the follow code:
Private Sub CmdPrint_Click()
Printer.Print Text1.Text
Printer.EndDoc
End Sub
By clicking the Print button you should be able to print the content of the text box.
The full code of the program as follows:
Dim linetext As String
Private Sub CmdPrint_Click()
Printer.Print Text1.Text
Printer.EndDoc
End Sub
Private Sub open_Click()
CommonDialog1.Filter = "Text files{*.txt)|*.txt"
CommonDialog1.ShowOpen
If CommonDialog1.FileName <> "" Then
Open CommonDialog1.FileName For Input As #1
Do
Input #1, linetext
Text1.Text = Text1.Text & linetext
Loop Until EOF(1)
End If
Close #1
End Sub
Private Sub save_Click()
CommonDialog1.Filter = "Text files{*.txt)|*.txt"
CommonDialog1.ShowSave
If CommonDialog1.FileName <> "" Then
Open CommonDialog1.FileName For Output As #1
Print #1, Text1.Text
Close #1
End If
End Sub
39.2 Formatting the Output using Printer Object properties
You can format your output before sending it to the printer using a number of font related Printer object properties. Some of these properties are listed below:
FontBold, FontItalic, FontSize, FontName and FontUnderline
The code to format your printed output is illustrated in the example below:
Private Sub CmdPrint_Click()
Printer.FontName="Verdana"
Printer.FontSize=16
Printer.FontBold=True
Pinter.FontItalic=True
Printer.FontUndeline=True
Printer.Print Text1.Text
Printer.EndDoc
End Sub
Lesson 40 : Creating Reports in Visual Basic 6
40.1 A brief introduction to reporting tool in Visual basic 6
You have learned how to build a database in Visual Basic 6 in previous chapters, however you have not learned how to display the saved data in a report. Reports are important and useful in many respects because they provide useful and meaningful information concerning a set of data. In this chapter, we will show you how to create a report in Visual Basic 6.
In previous versions of Visual Basic 6, there is no primary reporting . Previous versions of Visual basic 6 uses Crystal Reports tool, a software from Seagate. Fortunately, Microsoft has integrated a good report writer into Visual Basic 6, so you no longer need to use Crystal Report.
40.2 Steps in building your report in Visual Basic 6
Visual Basic 6 provides you with a data report designer to create your report, it is somewhat similar to data report designer in Microsoft Access. The data report designer has its own set of controls which allow you to customize your report seamlessly. The steps in creating the report in VB6 are listed below:
Step 1: Adding Data Report
Start Visual Basic as a Standard EXE project. From the Project menu in the VBE, select Add Data Report in the dropdown menu. Now, you will be presented with the data report environment, as shown in Figure 40.1. The data report environment contains 6 controls, they are RptTextBox, RptLine, RptFunction, RptLabel, RptImage and RptShape.
You can customize your report here by adding a title to the page header using the report label RptLabel. Simply drag and draw the RptLabel control on the data report designer window and use the Caption property to change the text that should be displayed. You can also add graphics to the report using the RptImage control.
Figure 40.1: The Data Report Environment
Step 2: Connecting the report to database using Data Environment Designer
Click the Project menu, then select Data Environment. from the drop-down menu. The default data environment will appear, as shown in figure 40.2
Figure 40.2: Data Environment
Now, to connect to the database, right-click connection1 and select Microsoft Jet 3.51 OLE DB Provider (as we are using MS Access database) from the Data Link Properties dialog (as shown in Figure 40.3), then click next.
Figure 40.3
Now, you need to connect to the database by selecting a database file from your hard disk. For demonstration purpose, we will use the database BIBLIO.MDB that comes with Visual Basic, as shown in Figure 40.4. The path to this database file is C:\Program Files\Microsoft Visual Studio\VB98\BIBLIO.MDB. This path varies from computers to computers, depending on where you install the file. After selecting the file, you need to test the connection by clicking the Test Connection button at the right bottom of the Data Link Properties dialog. If the connection is successful, a message that says 'Test Connection Succeeded' will appear. Click the OK button on the message box to return to the data environment. Now you can rename connection1 to any name you like by right-clicking it. For example, you can change it to MyConnection. You may also change the name of DataEnvironment1 to MyDataEnvironment using the Properties window.
Figure 40.4
Step 3: Retrieving Information from the Database
In order to use the database in your report, you need to create query to retrieve the information from the database. Here , we will use SQL command to create the query. First of all, right click on MyConnection to add a command to the data environment. The default command is Command1, you can rename it as MyCommand, as shown in Figure 40.5.
Figure 40.5: MyCommand
In order to use SQL command, right-click MyCommand and you can see its properties dialog. At the General tab, select SQL statement and key in the following SQL statement:
SELECT Au_ID, Author
FROM Authors ORDER BY Author
This command is to select all the fields from the Authors table in the Biblio.Mdb database. The command ORDER BY Author is to arrange the list in ascending order according to the Authors' Names.
Now, you need to customize a few properties of your data report so that it can connect to the database. The first property to set is the DataSource, set it to MyDataEnvironment. Next, you need to set the DataMember property to MyCommand,as shown in Figure 40.6
Figure 40.6: Properties of
To add data to your report, you need to drag the fields from MyCommand in MyDataEnvironment into MyDataReport, as shown in Figure 40.7.Visual Basic 6 will automatically draw a RptTextBox, along with a RptLabel control for each field on the report. You can customize the look of the labels as well as the TextBoxes from the properties window of MyDataReport.
Figure 40.7
The Final step is to set MydataReport as the Startup form from the Project menu, then run the program. You will see your report as shown in Figure 40.8. You can print out your report.
Figure 40.8: The Final Report.
Congratulation! You have finish reading all the 39 lessons, and now you can consider yourself a VB programmer.
JITENDRA YADAV
